Davis Entry Door Handle & Lock Set - Brushed Gunmetal
SKU: 16307
Free Delivery on Orders Over $1000!
Davis Entry Door Handle & Lock Set - Brushed Gunmetal
SKU: 16307
Free Delivery on Orders Over $1000!
Colour: Brushed Gunmetal
Complete with...
$44.90

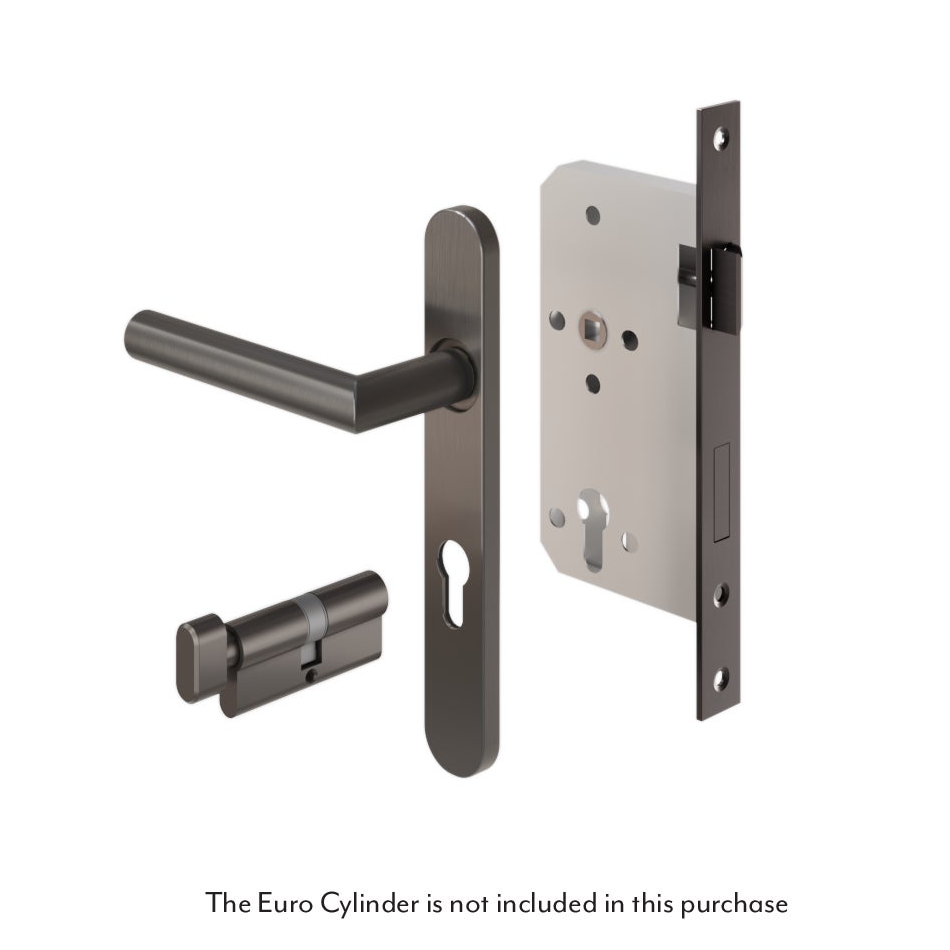

Euro Cylinder Single (Key/Turn) 70mm - Brushed Gunmetal
Product Details
The Euro Cylinder Single features a standardised locking mechanism with key-to-turn functionality. Although locking is possible from both sides, key-to-turn means only one side of the lock is secured by a key. This setup is ideal for situations where security is only required from one side of the door, such as front and back entryways, garages, or laundry rooms.
Constructed from durable 316 stainless steel, this euro cylinder locking system is engineered to withstand environmental conditions, making it ideal for both indoor and entryways. It is available in four distinctive colours for effortless design coordination.
Features:
– Highly durable 316 stainless steel construction with anti-corrosive properties.
– ABI HeatShield PVD Electro Colouring System provides a more corrosion-resistant finish.
– Secure six pin lock for additional security
– Our Euro Cylinders have been rigorously tested to meet Australian Standards (AS 4145.2-2008) and achieve the highest rating for durability (D8, 500 000 cycles), with corrosion resistance and security ratings (C7, S7).
Dimensions:
– Backset: 60mm
– Faceplate Height: 235mm
– Faceplate Width: 24mm
– Depth: 89mm
$44.90

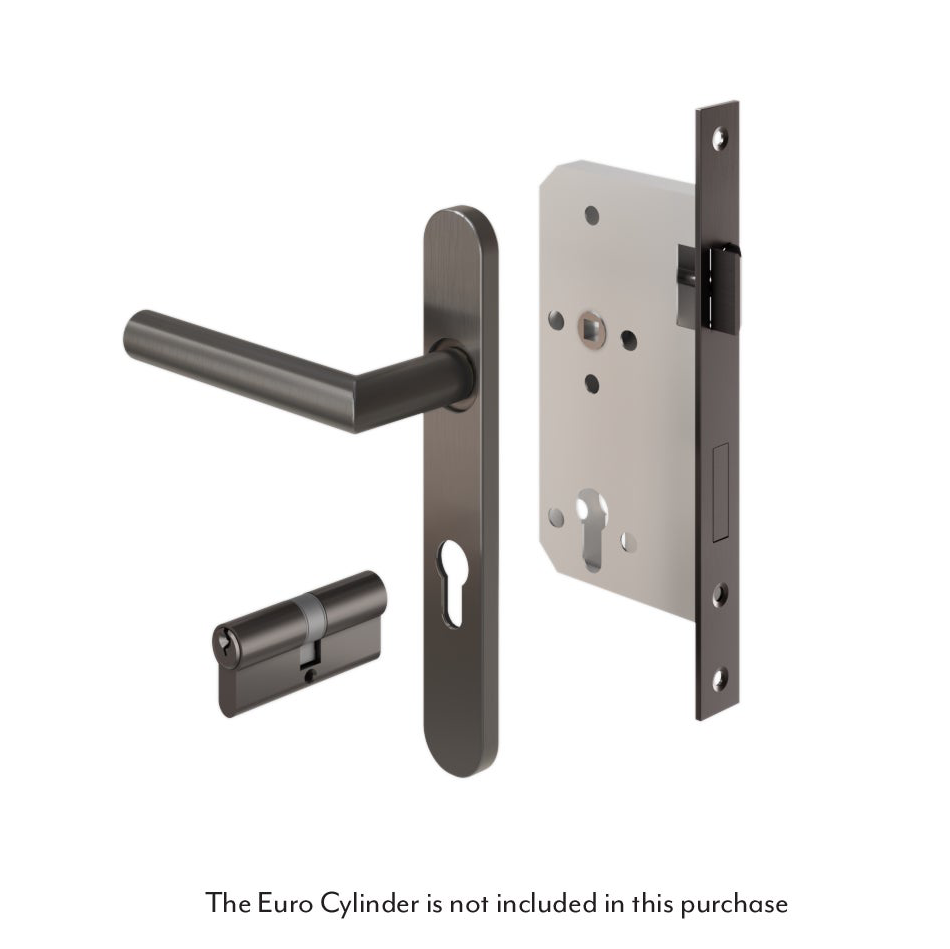

Euro Cylinder Double (Key/Key) 70mm - Brushed Gunmetal
Product Details
The Euro Double Cylinder incorporates a standardised locking mechanism with a key-to-key functionality that allows locking from both inside and outside to enhance security. While it’s suitable for installation in any door, this locking mechanism is ideal for security doors, as an extra layer of safety for family homes with young children, or business or apartment entrances.
Constructed from durable 316 stainless steel, this euro cylinder locking system is engineered to withstand environmental conditions, making it ideal for both indoor and entryways. It is available in four distinctive colourways for effortless design coordination.
Features :
– Highly durable 316 stainless steel construction with anti-corrosive properties
– ABI HeatShield PVD Electro Colouring System provides a more corrosion-resistant finish
– Secure six-pin lock for additional security
– Our Euro Cylinders have been rigorously tested to meet Australian Standards (AS 4145.2-2008) and achieve the highest rating for durability (D8, 500 000 cycles), with corrosion resistance and security ratings (C7, S7).
Dimensions:
– Backset: 60mm
– Faceplate Height: 235mm
– Faceplate Width: 24mm
– Depth: 89mm
Product Details
The Davis Entry Door Handle & Lock Set showcases the sleek, minimalist design of the Davis Entry Door Handle with the additional benefit of security with a mortice lock — giving you a complete Entry Door Pull and Lock Set.
Boasting the advantages of 316 stainless steel construction, such as anti-corrosion properties and rust resistance, this handle is ideal for exterior settings, complementing our interior Davis Door Handles for a cohesive design theme throughout the entire home.
Features:
– Highly durable 316 stainless steel construction with anti-corrosive properties
– ABI HeatShield PVD Electro Colouring System provides a more corrosion-resistant finish while remaining environmentally friendly
– Single or double-sided installation
– Consistent design theme with our internal Davis Door Handle
– Mortice lock functionality for additional security
– The Mortice Lock has been rigorously tested to meet Australian Standards (AS 4145.2-2008) and achieves the highest rating for durability (D8, 500 000 cycles), with corrosion resistance and security ratings (C7, S7).
– The Davis Door handle has been fire tested to 2 hours to meet compliance with Australian Standards (AS 1530.4:2014:2014).
Dimensions:
Door Handle:
– Euro Cylinder Backset: 60mm
– Faceplate Height: 235mm
– Faceplate Width:24mm
– Depth: 89mm
Lock:
– Height: 235mm
– Width: 24mm
– Depth: 89mm
Product Features
316 Stainless Steel
.svg){kind=icon}
PVD (Physical Vapour Deposition)
Anti-Corrosion
Material
Construction
316 Stainless Steel
Finish/Coating
(PVD) Brushed Gunmetal - ABI’s Heat Shield – Industrial Grade Electro Colouring System (Physical Vapour Deposition)
*We implement strict quality procedures to minimise colour variations, however we acknowledge that there may be minor differences between batches. We encourage you to check over your items once received to ensure that you are satisfied with the finish. Should you receive anything of concern, our team is here to help!
For more information on our finish quality
Specifications
| SKU | 16307 |
| Weight | 1.535kg |
| Brand | ABI Interiors |
| Finish/Coating | (PVD) Brushed Gunmetal - ABI’s Heat Shield – Industrial Grade Electro Colouring System (Physical Vapour Deposition) |
| Construction | 316 Stainless Steel |
| Dimensions (mm) | Entry Door Handle: Euro Cylinder Backset: 60mm Faceplate Height: 235mm Faceplate Width: 24mm Depth: 89mm Mortice Lock: Height: 235mm Width: 24mm Depth: 89mm |
| Hardware | Mounting hardware included |

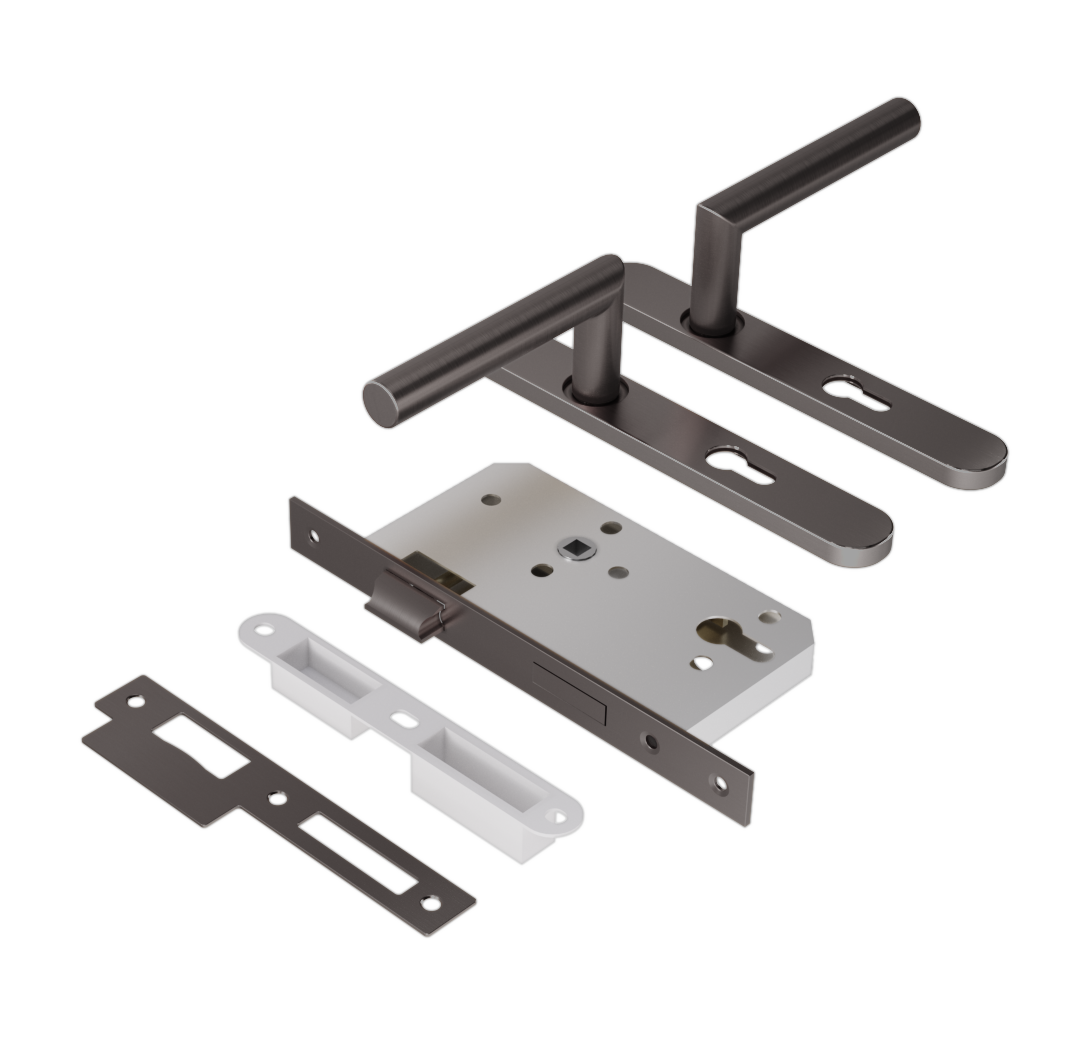

| What's In The Box | Box 1: 2 x Davis Entry Door Handles 3 x Connection Bolts 1 x Spindle 1 x Allen Key Box 2: 1 x Mortice Lock 1 x Strike plate 1 x Dust box 2 x Fixing screws 3 x Strike plate fixing screws |
| Australian Standards | Meets AS 4145.2-2008 Durability: D8, 500 000 Cycles Corrosion Resistance: C7 Security Rating: S7 Meets AS 1530.4:2014:2014 Fire Rating: 2 Hours |
| ETA |
Specification guides can be found under the Downloads tab.
Downloads
Product Documents
| Davis Entry Door Handle & Lock Set - Specification |  |
Bim Files
| View Library |  |
Brushed Gunmetal
At ABI, we use the highest quality materials and colouring processes to ensure a durable and timeless finish that you will love for years to come. Like many other materials, the colour may appear differently from product to product due to lighting within the installation location and reflection on products with different surfaces (flat and curved).
While we do our best to ensure consistency between batches and use strict colour toning and matching quality procedures to lessen variations, we acknowledge that there may be minor variations between batches. We encourage you to check over your items once received to ensure that you are satisfied with the finish. Should you receive anything of concern, our team is here to help!
| PRODUCT DESCRIPTION | RESIDENTIAL WARRANTY | NON-RESIDENTIAL WARRANTY | OUTDOOR WARRANTY | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name & Finish | SKU | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other |
| Davis Entry Door Handle & Lock Set - Brushed Gunmetal | 16307 | 25 | 5 | - | 2 | 5 | 1 | - | 1 | 10 | 2 | - | 1 |
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
Product FAQs
Can this product be retrofitted to my existing door?
Because of the slim design of the backplate, retrofitting may be challenging due to the limited fixing locations, although not entirely impossible. We suggest consulting with a licensed tradesperson for advice tailored to your particular door.
Can this product be used on an internal door?
Yes, however, please note that installing it with a mortice lock will require extra time for installation, which may cost more in trade fees.
Can the Davis Entry Door Handle be installed double-sided?
Yes, the Davis Entry Door Handle can be installed double-sided as it is packaged with two door handles.
Is this product suitable for outdoor use?
Yes, the Davis Entry Door Handle is constructed from 316 Stainless Steel — a premium external material for outdoor use.
Do I need a Euro Cylinder to install this product?
Yes, this product requires a Euro Cylinder to function. You can purchase the Euro Cylinder separately from ABI or use a euro cylinder of your own.
