Free Delivery on Orders Over $1000!
Product Details

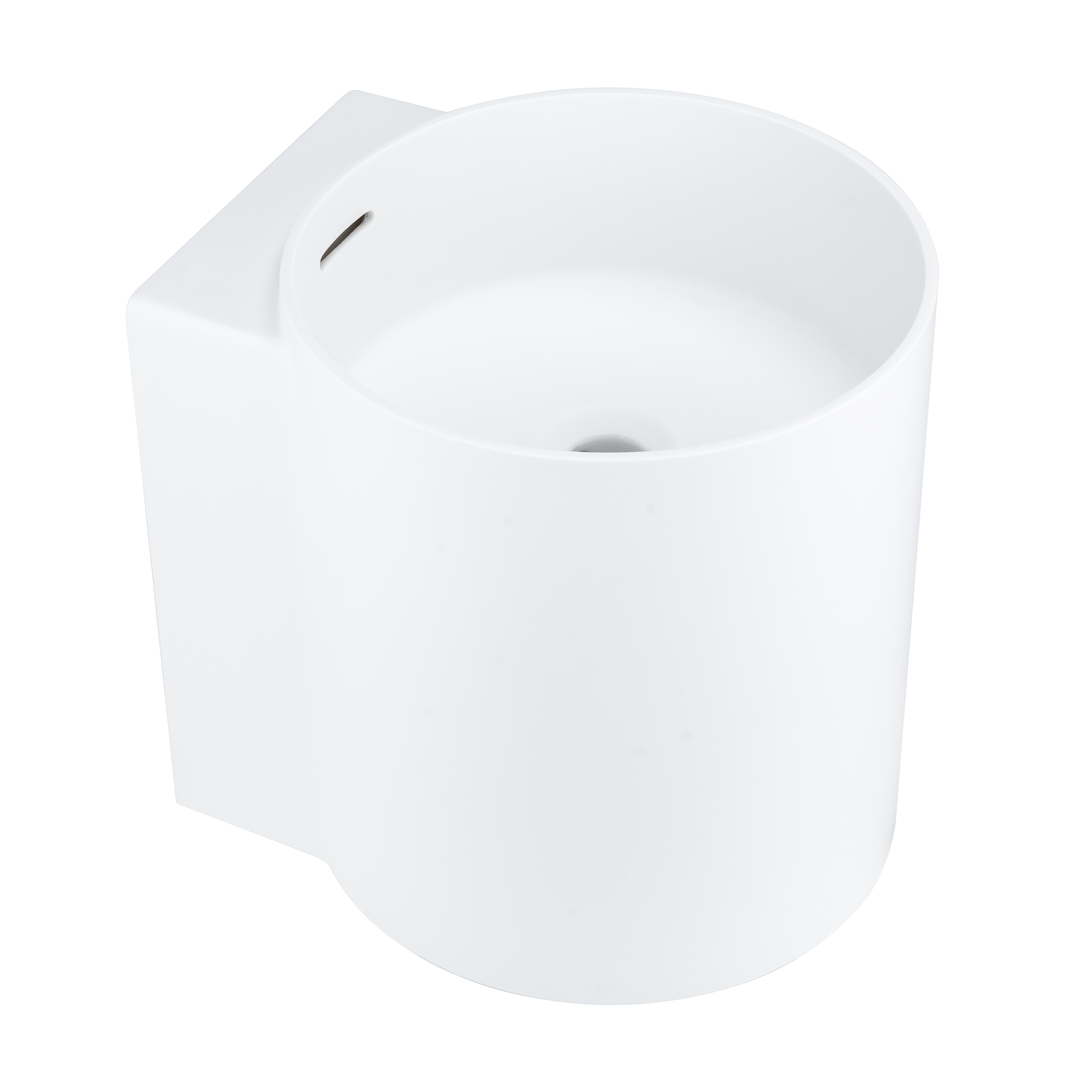

Wall-mounted cylinder basins add instant elegance to bathrooms or powder rooms. The Esme brings that extra level of dimension into your space with its stylish curvatures. Its minimalist design and wall-mounted fixture ensure it’s also reassuringly space-saving, while its solid surface construction brings some superb strength and resistance qualities.
This overflow basin has been thoughtfully designed with an overflow rate of 9L / min — helping to prevent water damage in wet areas while enhancing everyday functionality and peace of mind.
Please Note:
– Waste is not included but can be purchased separately here.
Features:
– Wall-Mounted
– Solid Surface Construction
– Matte finish
Dimensions:
– Cylinder: 320mm
– Width: 370mm
– Height: 360mm
– Capacity: 5.3L
Shop Other Colour Options
Shop Other Colour Options
Product Info
Solid Surface
Wall-Mounted
Matte Finish
| SKU | 18013 |
| Weight | 16kg |
| Brand | ABI Interiors |
| Finish/Coating | Matte White - Solid Surface |
| Dimensions | Cylinder: 320mm Width: 370mm Height: 360mm Bowl Depth: 120mm Capacity: 5.3L Capacity: 5.3L |
| What's In The Box | 1 x Basin 4 x Wall plugs 4 x Hanger bolts 4 x Plastic washers 1 x Fine Grit Cleaning Sandpaper |
Specification guides can be found under the Downloads tab.
| PRODUCT DESCRIPTION | RESIDENTIAL WARRANTY | NON-RESIDENTIAL WARRANTY | OUTDOOR WARRANTY | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name & Finish | SKU | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other |
| Esme Mini Wall - Mounted Basin - Cylinder (Overflow) | 18013 | 10 | 5 | - | 2 | 5 | 1 | - | 1 | - | - | - | - |
Product Documents

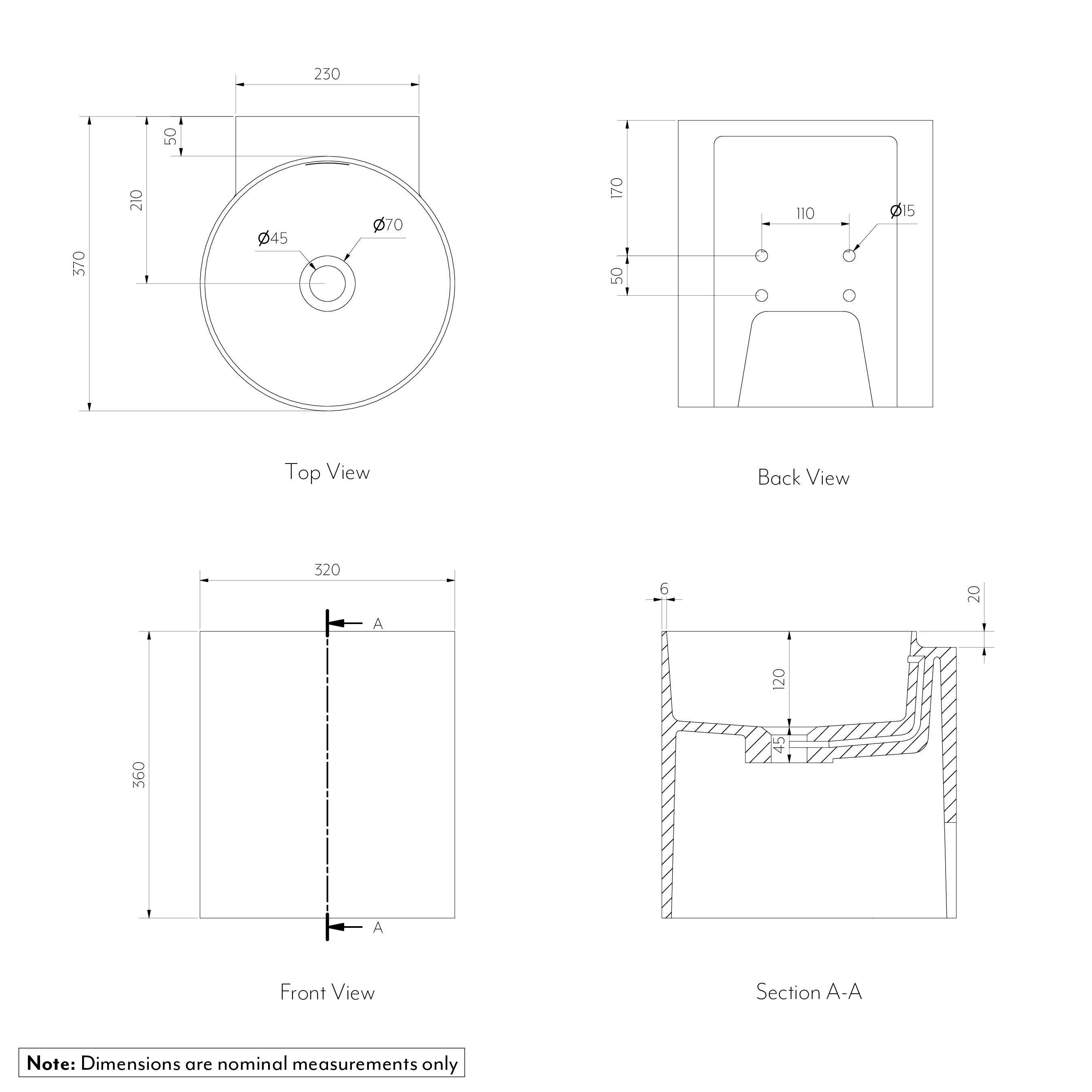

| Esme Mini Wall - Mounted Basin - Cylinder (Overflow) - Specification |  |
Bim Files
| View Library |  |
Product FAQs
How far is the waste located from the wall?
The waste is located 210mm from the wall.
Do you provide an installation guide?
Yes, you will find an installation guide on the online product page under ‘Product Documents’. Please note that this product must be installed by a licensed tradesperson. This is a general installation guide due to there being many factors involved that can alter the method of installation.
How do I best clean the Esme Mini Wall - Mounted Basin - Cylinder (Overflow)?
Clean any marks or stains as soon as they occur. Clean with warm soapy water and a microfibre cloth to remove most markings or use a cream-based cleanser. Fine grade sandpaper can be used to remove stains or markings in some instances - fine grit sandpaper is included with your purchase.
Do the wastes act as an overflow, and how do they work with overflow basins?
Wastes themselves do not act as overflow prevention. When the waste or plug is pushed down (closed), the basin will fill and can potentially overflow. However, basins with an integrated overflow outlet are designed to prevent this. As the basin fills, any excess flows through the overflow outlet and into the waste pipe at a rate of 9L per minute — helping to prevent the water from spilling over.
When the waste is open and the basin is clear of blockages, water should drain normally without reaching the overflow level.
Is the Esme Mini Wall - Mounted Basin - Cylinder (Overflow) hollow?
Yes, the Esme Mini Wall - Mounted Basin - Cylinder (Overflow) is hollow. This allows the sink to be discreetly plumbed.
