In-Wall Assembly Taps - Adjustable Extended Spindle Set - Solid Brass
SKU: 19190
Free Delivery on Orders Over $1000!

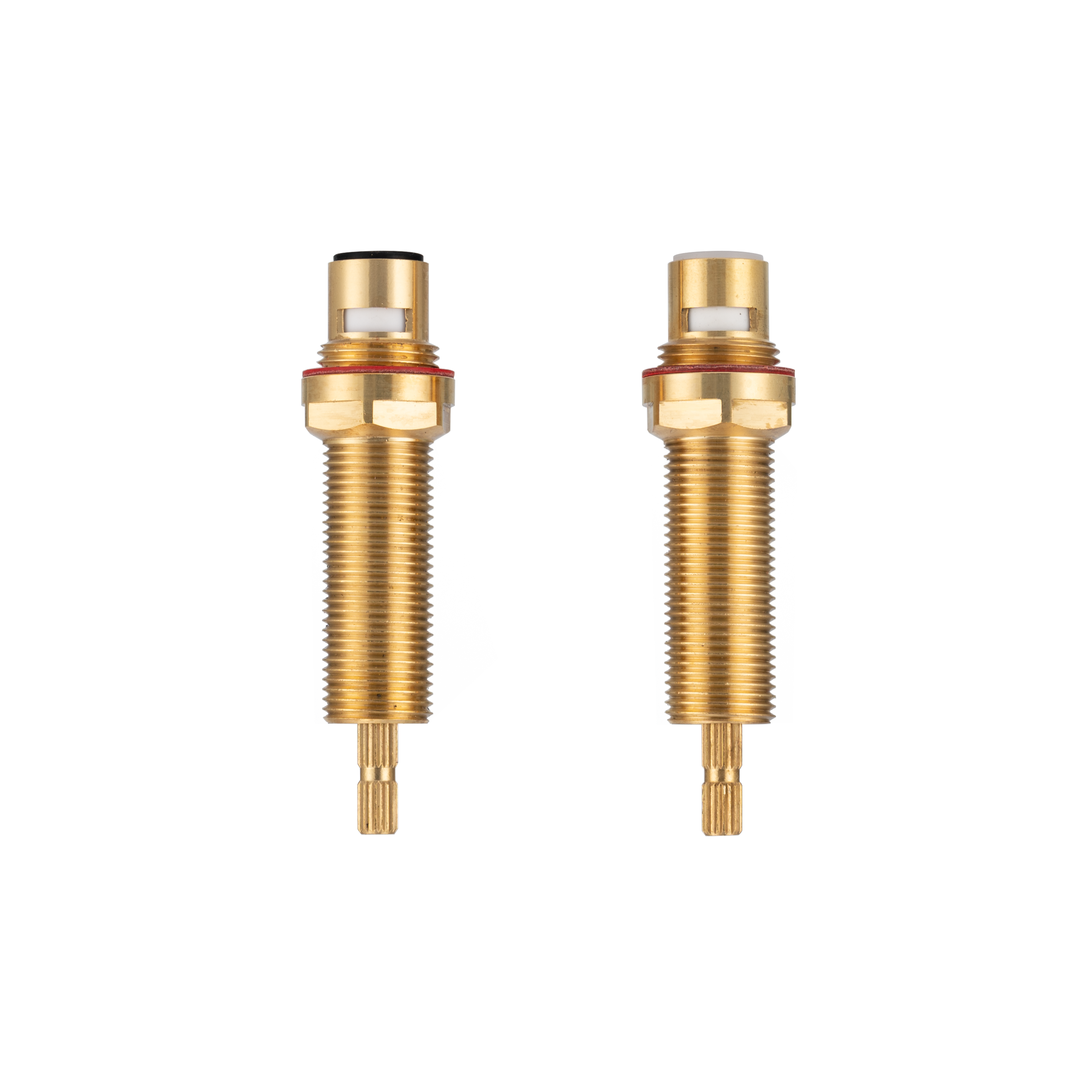

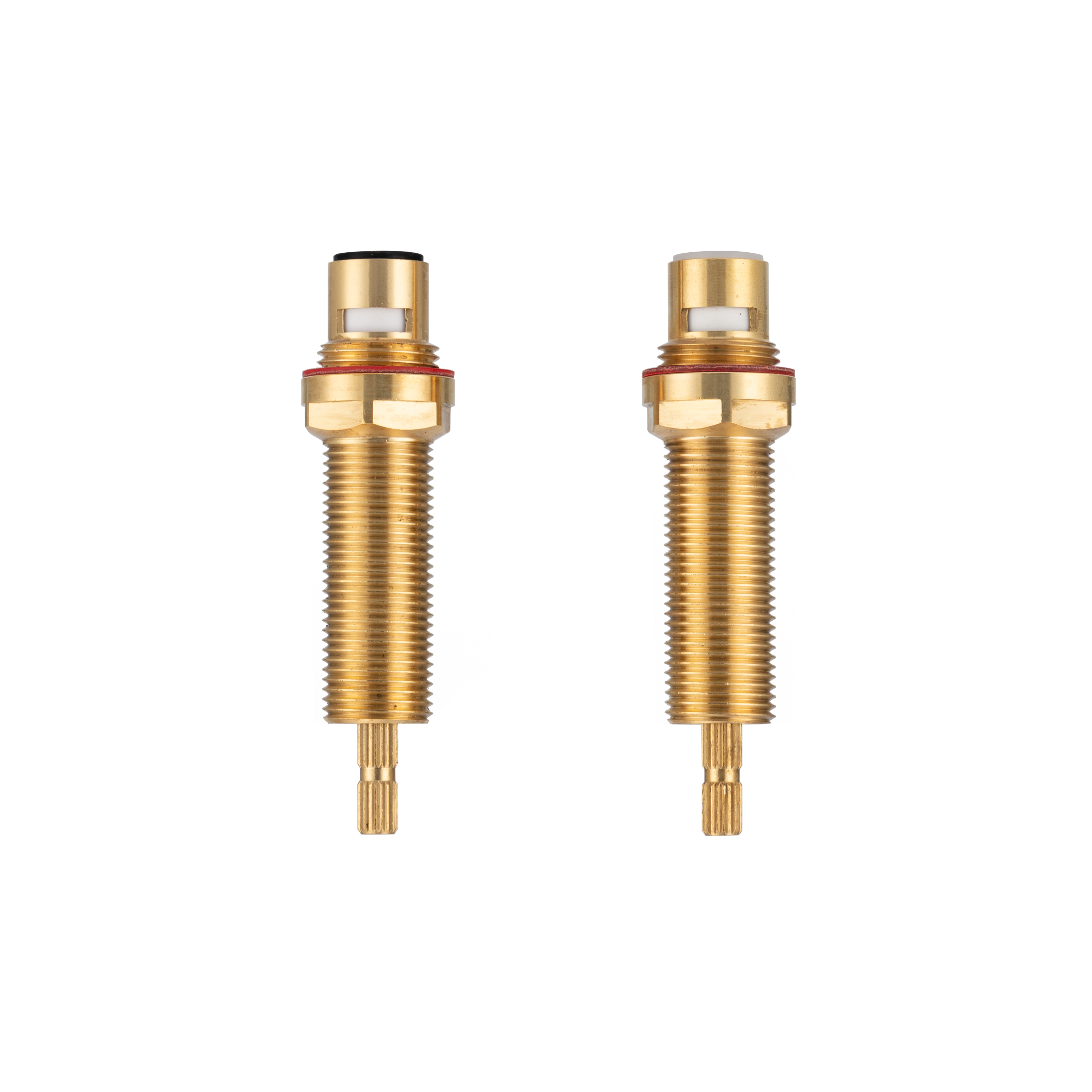

In-Wall Assembly Taps - Adjustable Extended Spindle Set - Solid Brass
SKU: 19190
Free Delivery on Orders Over $1000!
Product Details
Spindles are an essential tapware component that connect the handle to the internal valve, enabling you to turn the water on and off when operating the handle.
The In-Wall Assembly Taps Adjustable Extended Spindle Set is designed to suit a wide range of installation depths, featuring a trimmable design for added flexibility. It is compatible with the following assembly handle kits: Milani, Cross, Barre, Pixi Tile Insert, Namika, and Kingsley.
Please note:
–Your plumber will need to supply and install the required in-wall breech.
–This spindle must be cut to size on site by your plumber to suit the selected handle kit.
–This spindle can be installed during the rough-in stage, allowing you to finalise your handle colour and style at a later stage.
Features:
–Solid brass construction
– Includes a cuttable combination spindle, accommodating a wider range of installation depths without the need for additional extendable spindles
Product Features
Solid Brass
Ease of Installation
Diverse Application
Material
Construction
Solid Brass
*We implement strict quality procedures to minimise colour variations, however we acknowledge that there may be minor differences between batches. We encourage you to check over your items once received to ensure that you are satisfied with the finish. Should you receive anything of concern, our team is here to help!
For more information on our finish quality
Specifications
| SKU | 19190 |
| Weight | 0.4kg |
| ETA | |
| Construction | Solid Brass |
| Function | 1/4 turn (clockwise & anti-clockwise spindle in set) |
| What's In The Box | 1x Hot spindle- Red 1x Cold spindle- Blue 2 x Compression washer 2 x Locking nuts |
Specification guides can be found under the Downloads tab.
Downloads
Product Documents

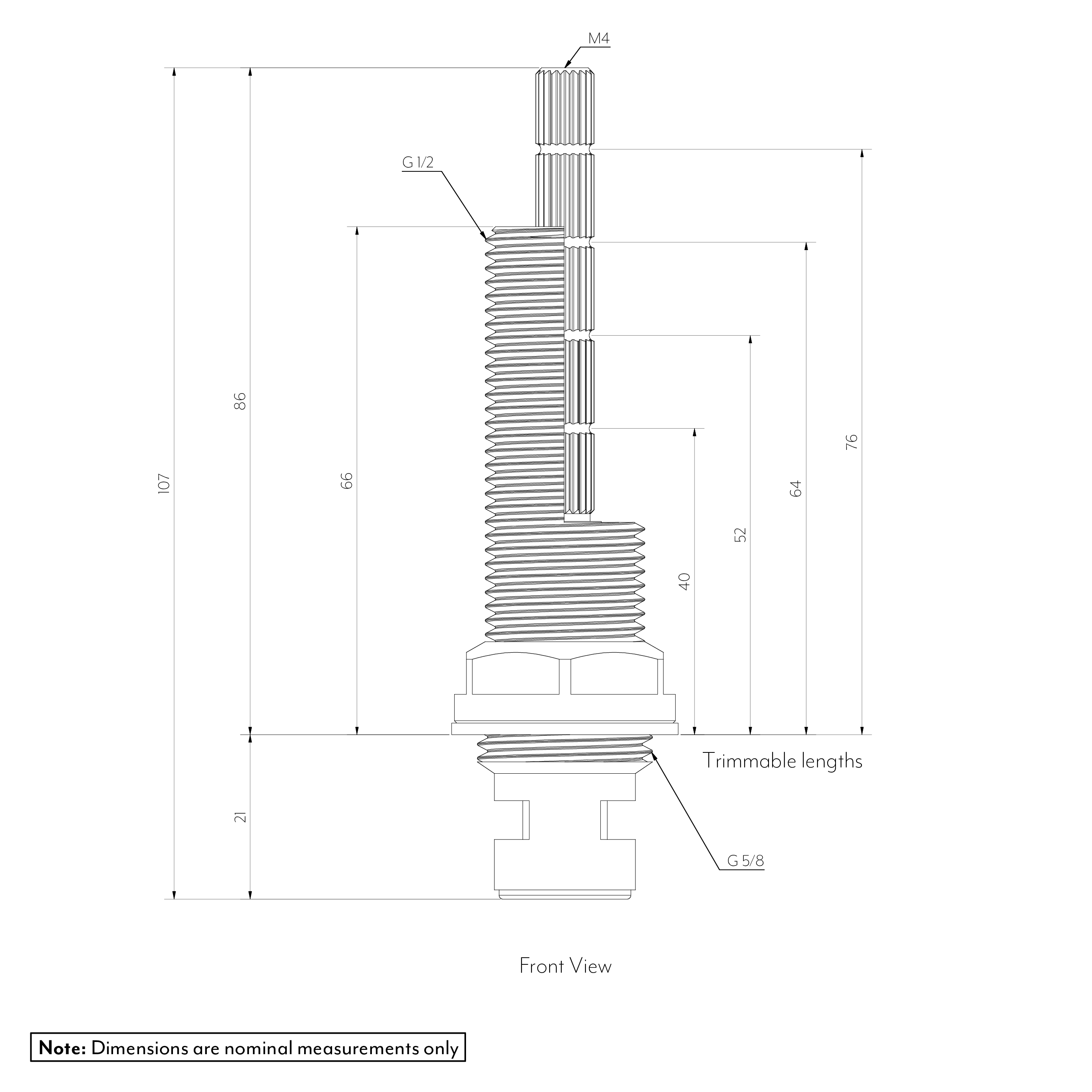

| In-Wall Assembly Taps - Adjustable Extended Spindle Set -Solid Brass - Product Specification |  |
Bim Files
| View Library |  |
Product FAQs
What products are compatible with these spindles?
The In-Wall Assembly Taps Adjustable Extended Spindle Set is compatible with a all of ABI's Assembly Handle Kits, including Milani, Cross, Barre, Pixi Tile Insert, Namika, Elysian and Kingsley.
