Product Details

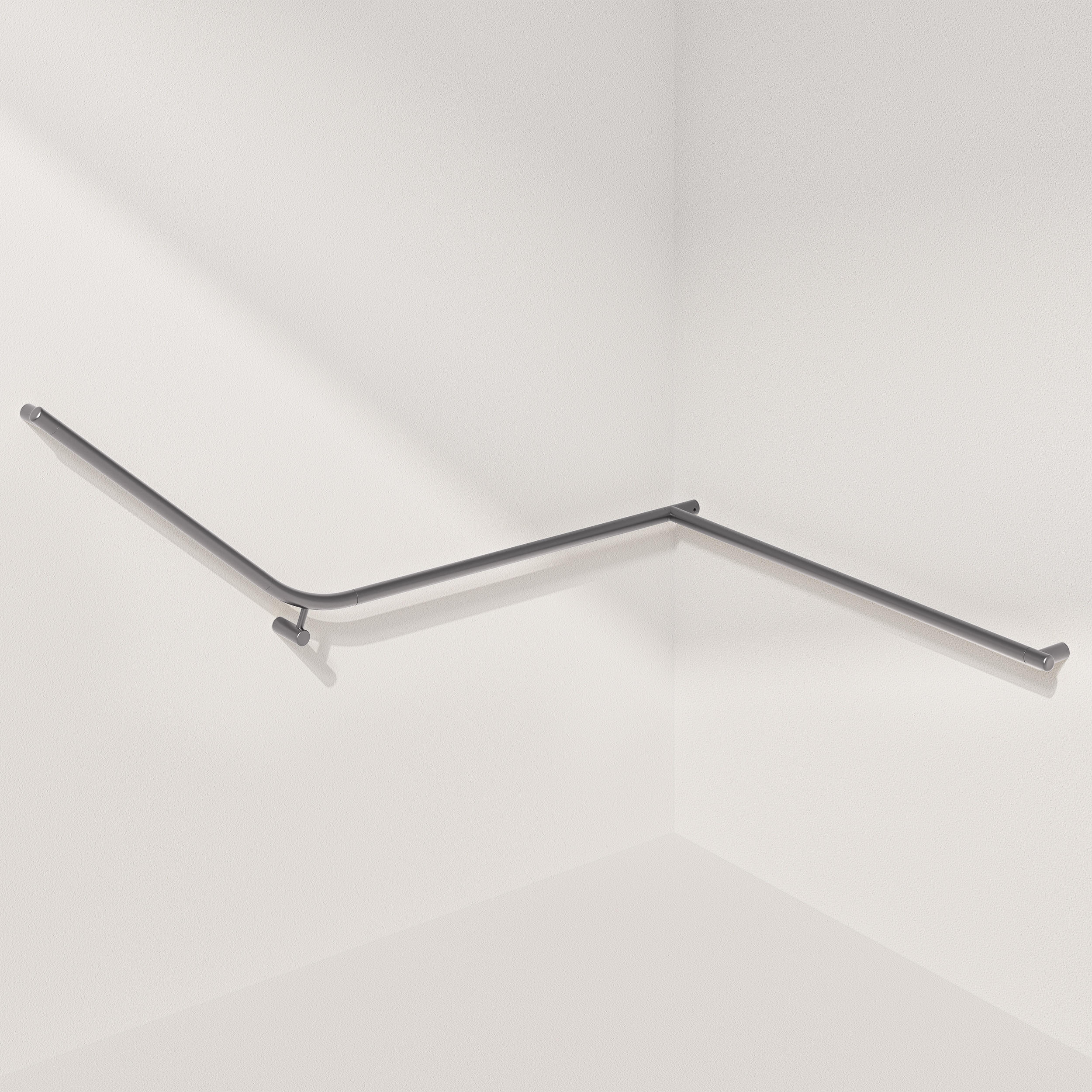

Constructed from 316 stainless steel, our wall-mounted Aliro Accessible 140° Continuous Grab Rail combines reliable support with highly durable, anti-corrosive properties.
The grab rail’s convenient, modular configuration ensures flexibility for both left and right orientations.
Please Note:
– Our Aliro Accessible 140° Continuous Grab Rail is designed and tested to meet AS1428.1:2021 Standards. It is the responsibility of the purchaser to consult a professional prior to installation to ensure the products are installed in a manner that maintains their compliance with the relevant Standards and meets all applicable regulatory requirements. ABI Interiors accepts no liability for any non-compliance with the Standards that occurs as a result of installation that is not in accordance with ABI’s installation guidelines or the Standards, or any failure to meet any regulatory requirements.
Features:
– Highly durable 316 stainless steel construction offers superior anti-corrosive properties that include chloride resistance.
– Flexible configuration allows for versatile installation.
– Physical Vapour Deposition (PVD) coating for longevity and durability.
– Independently strength tested* and approved to ensure compliance with the AS1428.1:2021.
Dimensions:
– Grab Rail Diameter: 32mm
– Projection: 87mm
– Length: 1643mm
– Width: 1164mm
– Height: 569mm
*All of ABI Interiors’ Australian Standard compliance testing is performed through the National Association of Testing Authorities (NATA).
Shop Other Colour Options
Shop Other Colour Options
Product Info
Accessible
316 Stainless Steel
.svg){kind=icon}
PVD (Physical Vapour Deposition)
Brushed Gunmetal
At ABI, we use the highest quality materials and colouring processes to ensure a durable and timeless finish that you will love for years to come. Like many other materials, the colour may appear differently from product to product due to lighting within the installation location and reflection on products with different surfaces (flat and curved).
While we do our best to ensure consistency between batches and use strict colour toning and matching quality procedures to lessen variations, we acknowledge that there may be minor variations between batches. We encourage you to check over your items once received to ensure that you are satisfied with the finish. Should you receive anything of concern, our team is here to help!
| SKU | 14738 |
| Weight | 5.9kg |
| Brand | ABI Interiors |
| Finish/Coating | (PVD) Brushed Gunmetal – ABI’s Heat Shield – Industrial Grade Electro Colouring System (Physical Vapour Deposition) |
| Construction | 316 Stainless Steel |
| Dimensions (mm) | Grab Rail Diameter: 32mm Projection: 87mm Length: 1643mm Width: 1164mm Height: 569mm |
| Mounting Hardware Included | M10 x 75mm Coach Screw |
| What's In The Box | Grab Rail Kit: 2 x End Bracket 1 x 610mm Rail 1 x 140 Degree Bracket 1 x 825mm Rail 1 x Corner Bracket 1 x 1010mm Rail Fixing Kit: 4 x Fixing Bracket 4 x Coach Screw 4 x O Ring 4 x Washer 10 x Grub Screw |
| ETA |
Specification guides can be found under the Downloads tab.
| PRODUCT DESCRIPTION | RESIDENTIAL WARRANTY | NON-RESIDENTIAL WARRANTY | OUTDOOR WARRANTY | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name & Finish | SKU | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other |
| Aliro Accessible 140° Continuous Grab Rail - Brushed Gunmetal | 14738 | 25 | 5 | - | 2 | 5 | 1 | - | 1 | 25 | 1 | - | 1 |
Product Documents
| Aliro Accessible 140° Continuous Grab Rail Specification |  |
