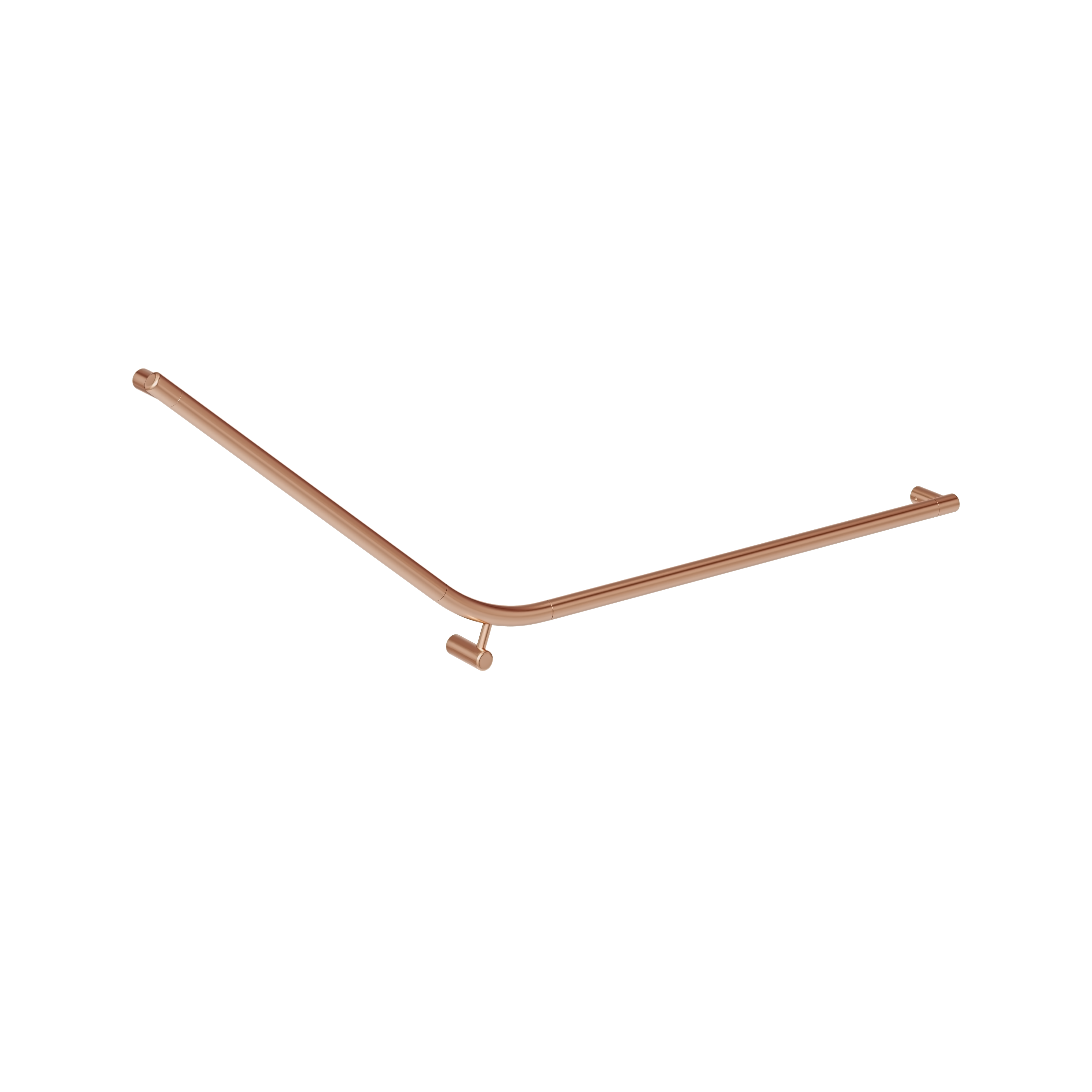

Aliro Accessible 140° Grab Rail - Brushed Copper - Set

SKU: 14749

in stock


Aliro Accessible 140° Grab Rail - Brushed Copper - Set

SKU: 14749

in stock


$929.90
Add to Cart
Also Bought With
Chevron-Down

Product Details

Constructed from 316 stainless steel, our wall-mounted Aliro Accessible 140° Grab Rail combines reliable support with highly durable, anti-corrosive properties.

Its convenient, modular configuration ensures flexibility for both left and right orientations.

Please Note:

– Our Aliro Accessible 140° Grab Rail is designed and tested to meet AS1428.1:2021 Standards. It is the responsibility of the purchaser to consult a professional prior to installation to ensure the products are installed in a manner that maintains their compliance with the relevant Standards and meets all applicable regulatory requirements. ABI Interiors accepts no liability for any non-compliance with the Standards that occurs as a result of installation that is not in accordance with ABI’s installation guidelines or the Standards, or any failure to meet any regulatory requirements.

Features:

– Highly durable 316 stainless steel construction offers superior anti-corrosive properties that include chloride resistance.
– Flexible configuration allows for multiple installation options.
– Physical Vapour Deposition (PVD) coating for longevity and durability.
– Independently strength tested* and approved to ensure compliance with the AS1428.1:2021

Dimensions:

– Length: 1597mm
– Grab Rail Diameter: 32mm
– Projection: 93mm
– Height: 571mm

Separate Grab Rail:

– Length: 357mm
– Grab Rail Diameter: 32mm
– Projection: 87mm

*All of ABI Interiors’ Australian Standard compliance testing is performed through the National Association of Testing Authorities (NATA).

Product Info

  • Features
  • Specifications
  • Warranty
  • Environment
  • Downloads
Accessible
316 Stainless Steel
PVD (Physical Vapour Deposition)
SKU 14749
Weight 5.7kg
Brand ABI Interiors
Construction 316 Stainless Steel
Dimensions (mm) Length: 1597mm
Grab Rail Diameter: 32mm
Projection: 93mm
Height: 571mm

Separate Grab Rail:
Length: 357mm
Grab Rail Diameter: 32mm
Projection: 87mm
What's In The Box Grab Rail Kit:

4 x End Bracket
1 x 610mm Rail
1 x 140 Degree Bracket
1 x 825mm Rail
1 x 225mm Rail

Fixing Kit:

5 x Fixing Bracket
5 x Coach Screw
5 x O Ring
5 x Washer
11 x Grub Screw
ETA

Specification guides can be found under the Downloads tab.

PRODUCT DESCRIPTION RESIDENTIAL WARRANTY NON-RESIDENTIAL WARRANTY OUTDOOR WARRANTY
Name & Finish SKU Structure Finish Cartridge Other Structure Finish Cartridge Other Structure Finish Cartridge Other
Aliro Accessible 140° Grab Rail - Brushed Copper 14749 25 5 - 2 5 1 - 1 25 1 - 1
Bim Files
View Product Download
View Collection Download
View Library Download

Product FAQs


What is the difference between 90° and 140° grab rail styles and when should I choose each option?

Customer preferences are based on room sizing and dimensions.

The 90° Grab Rail is an option that requires less space compared to the 140° Grab Rail which requires greater space clearance. It is the responsibility of the purchaser to consult a professional prior to installation for guidance.
