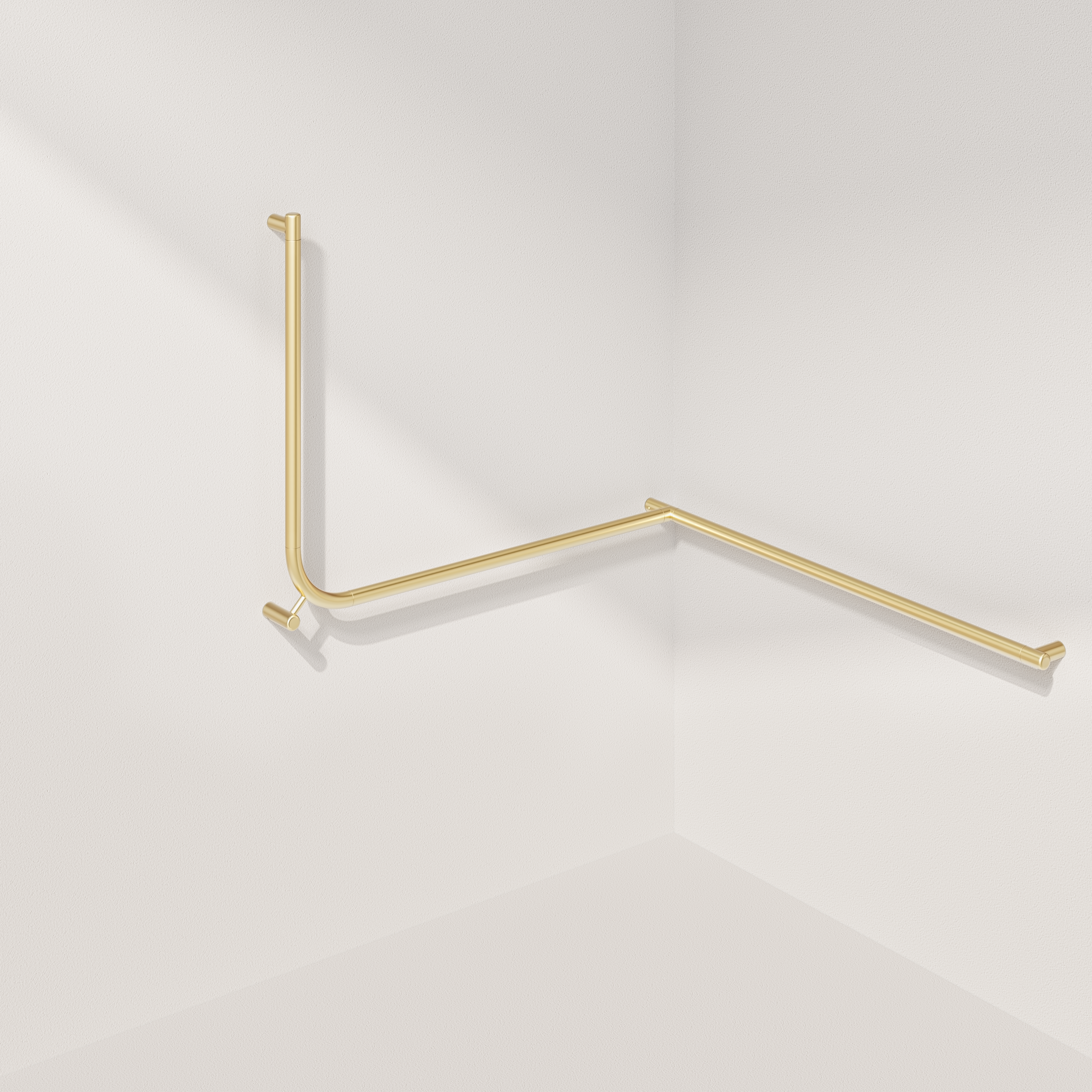

Aliro Accessible 90° Continuous Grab Rail - Brushed Brass

SKU: 14732

in stock


Aliro Accessible 90° Continuous Grab Rail - Brushed Brass

SKU: 14732

in stock


$969.90
Add to Cart
Also Bought With
Chevron-Down

Product Details

Constructed from 316 stainless steel, our wall-mounted Aliro Accessible 90° Continuous Grab Rail combines reliable support with highly durable, anti-corrosive properties.

The grab rail’s convenient, modular configuration ensures flexibility for both left and right orientations.

Please Note:

– Our Aliro Accessible 90° Continuous Grab Rail is designed and tested to meet AS1428.1:2021 standards. It is the responsibility of the purchaser to consult a professional prior to installation to ensure the products are installed in a manner that maintains their compliance with the relevant Standards and meets all applicable regulatory requirements. ABI Interiors accepts no liability for any non-compliance with the Standards that occurs as a result of installation that is not in accordance with ABI’s installation guidelines or the Standards, or any failure to meet any regulatory requirements.

Features:

– Highly durable 316 stainless steel construction offers superior anti-corrosive properties that include chloride resistance.
– Flexible configuration allows for versatile installation.
– Physical Vapour Deposition (PVD) coating for longevity and durability.
– Independently strength tested* and approved to ensure compliance with the AS1428.1:2021.

Dimensions:

– Grab Rail Diameter: 32mm
– Projection: 87mm
– Length: 1164mm
– Width: 1083mm
– Height: 822mm

*All of ABI Interiors’ Australian Standard compliance testing is performed through the National Association of Testing Authorities (NATA).



Product Info

  • Features
  • Specifications
  • Warranty
  • Environment
  • Downloads
Accessible
316 Stainless Steel
PVD (Physical Vapour Deposition)
SKU 14732
Weight 5.9kg
Brand ABI Interiors
Finish/Coating (PVD) Brushed Brass – ABI’s Heat Shield – Industrial Grade Electro Colouring System (Physical Vapour Deposition)
Construction 316 Stainless Steel
Dimensions (mm) Grab Rail Diameter: 32mm
Projection: 87mm
Length: 1164mm
Width: 1083mm
Height: 822mm
What's In The Box Grab Rail Kit:

2 x End Bracket
1 x 610mm Rail
1 x 90 degree Bracket
1 x 825mm Rail
1 x Corner Bracket
1 x 1010mm Rail

Fixing Kit:

4 x Coach Screw
4 x O Ring
4 x Fixing Bracket
4 x Washer
10 x Grub Screw
ETA

Specification guides can be found under the Downloads tab.

PRODUCT DESCRIPTION RESIDENTIAL WARRANTY NON-RESIDENTIAL WARRANTY OUTDOOR WARRANTY
Name & Finish SKU Structure Finish Cartridge Other Structure Finish Cartridge Other Structure Finish Cartridge Other
Aliro Accessible 90° Continuous Grab Rail - Brushed Brass 14732 25 5 - 2 5 1 - 1 25 1 - 1
Bim Files
View Product Download
View Collection Download
View Library Download
