Aliro Tactile Indicators (36 PCS) - Brushed Brass
SKU: 16461
Free Delivery on Orders Over $1000!
Aliro Tactile Indicators (36 PCS) - Brushed Brass
SKU: 16461
Free Delivery on Orders Over $1000!
Colour: Brushed Brass
Product Details
Tactile Indicators are textured ground plates designed to help the visually impaired navigate public spaces. The primary function of these warning indicators is to aid in navigation of public spaces and alert individuals to potential hazards.
Our Aliro Tactile Indicators are constructed from 316 stainless steel with ABI HeatShield PVD Electro Colouring System — providing a highly durable and corrosion-resistant finish. To help maintain design continuity, our Tactile Indicators are available in four of our signature finishes: brushed brass, brushed gunmetal, brushed copper, and stainless steel.
Please Note:
– Our Tactile Indicators have been designed to comply with AS/NZS 1428.4.1:2009.
– Our Tactile Indicators have been tested in accordance with AS 4586:2013, with a slip rating of R12 and a wet pendulum rating of P5.
– The Luminance Reflectance Values of our tactile indicators have been tested using compliant testing apparatus in accordance with AS/NZS 1428.4.1:2009. This information can be found under product specifications.
– This product must be installed in accordance with the relevant Australian Standards and regulations. It is the responsibility of the purchaser to consult a professional prior to installation to ensure this product is properly installed. ABI Interiors accepts no liability for damages or non-compliance with the Standards occurring as a result of improper installation or any other failure to comply with the applicable regulatory requirements.
Features:
– Highly durable 316 stainless steel construction with anti-corrosive properties.
– ABI HeatShield PVD Electro Colouring System provides a more corrosion-resistant finish while remaining environmentally friendly.
– Thoughtfully designed to meet AS/NZS 1428.4.1:2009 Standards.

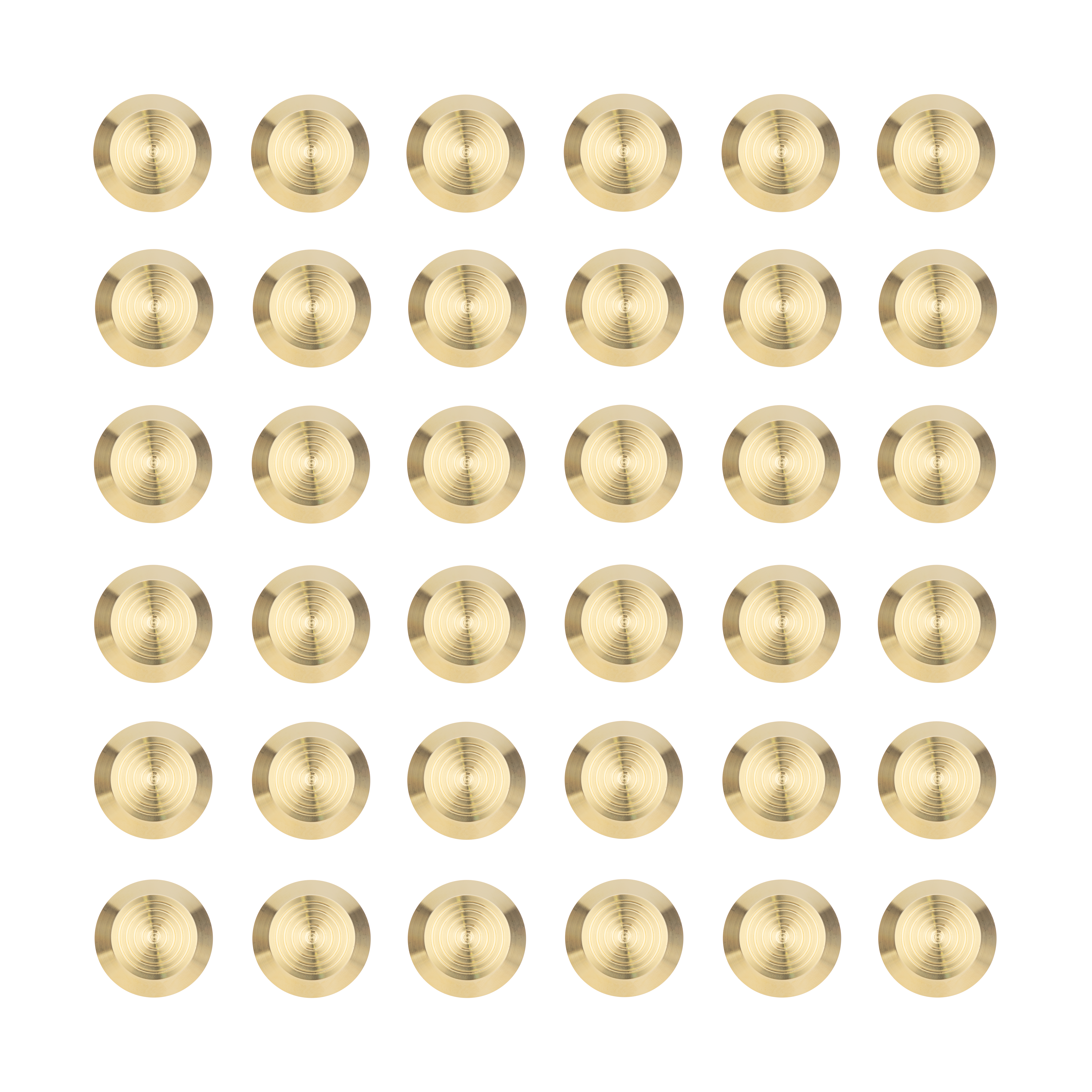

– Sold in packs of 36 with a cardboard template to assist with installation.
Dimensions:
– Height: 16.5mm
– Diameter: 35mm
Product Features
Accessible
316 Stainless Steel
Highly Durable
Material
Construction
316 Stainless Steel
Finish/Coating
(PVD) Brushed Brass - ABI's Heat Shield - Industrial Grade Electro Colouring System (Physical Vapour Deposition)
*We implement strict quality procedures to minimise colour variations, however we acknowledge that there may be minor differences between batches. We encourage you to check over your items once received to ensure that you are satisfied with the finish. Should you receive anything of concern, our team is here to help!
For more information on our finish quality
Specifications
| SKU | 16461 |
| Weight | 1.32kg |
| Brand | ABI Interiors |
| Finish/Coating | (PVD) Brushed Brass - ABI's Heat Shield - Industrial Grade Electro Colouring System (Physical Vapour Deposition) |
| Construction | 316 Stainless Steel |
| Luminance Reflectance Values | Dry LRV: 44.42 Wet LRV: 43.01 |
| Dimensions (mm) | Height: 16.5mm Diameter: 35mm |
| What's In The Box | 36 x Tactile Indicators 1 x Cardboard Template |
| ETA | Late November |
Specification guides can be found under the Downloads tab.
Downloads
Product Documents
| Aliro Tactile Indicators - Specification |  |
Bim Files
| View Product |  |
| View Collection | |
| View Library | |
Brushed Brass
At ABI, we use the highest quality materials and colouring processes to ensure a durable and timeless finish that you will love for years to come. Like many other materials, the colour may appear differently from product to product due to lighting within the installation location and reflection on products with different surfaces (flat and curved).
While we do our best to ensure consistency between batches and use strict colour toning and matching quality procedures to lessen variations, we acknowledge that there may be minor variations between batches. We encourage you to check over your items once received to ensure that you are satisfied with the finish. Should you receive anything of concern, our team is here to help!
| PRODUCT DESCRIPTION | RESIDENTIAL WARRANTY | NON-RESIDENTIAL WARRANTY | OUTDOOR WARRANTY | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name & Finish | SKU | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other |
| Aliro Tactile Indicators (36 PCS) - Brushed Brass | 16461 | 10 | 2 | - | - | 5 | 1 | - | - | 5 | 1 | - | - |
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
Product FAQs
How many Tactile Indicators are included with purchase?
Our Tactile Indicators are sold in packs of 36, or can be purchased individually.
How do I install the Tactile Indicators?
Please consult a qualified tradesperson for installation of this product — instructions can be found under the Product Documents tab. A 6x6 square installation template is included with purchase. We also recommend a soft rubber mallet (not provided) for installation to prevent damage to the PVD finish.
Do your Tactile Indicators meet Australian/New Zealand Standards?
Our Tactile Indicators are designed and tested to meet AS/NZS 1428.4.1:2009 Standards.
