Product Details

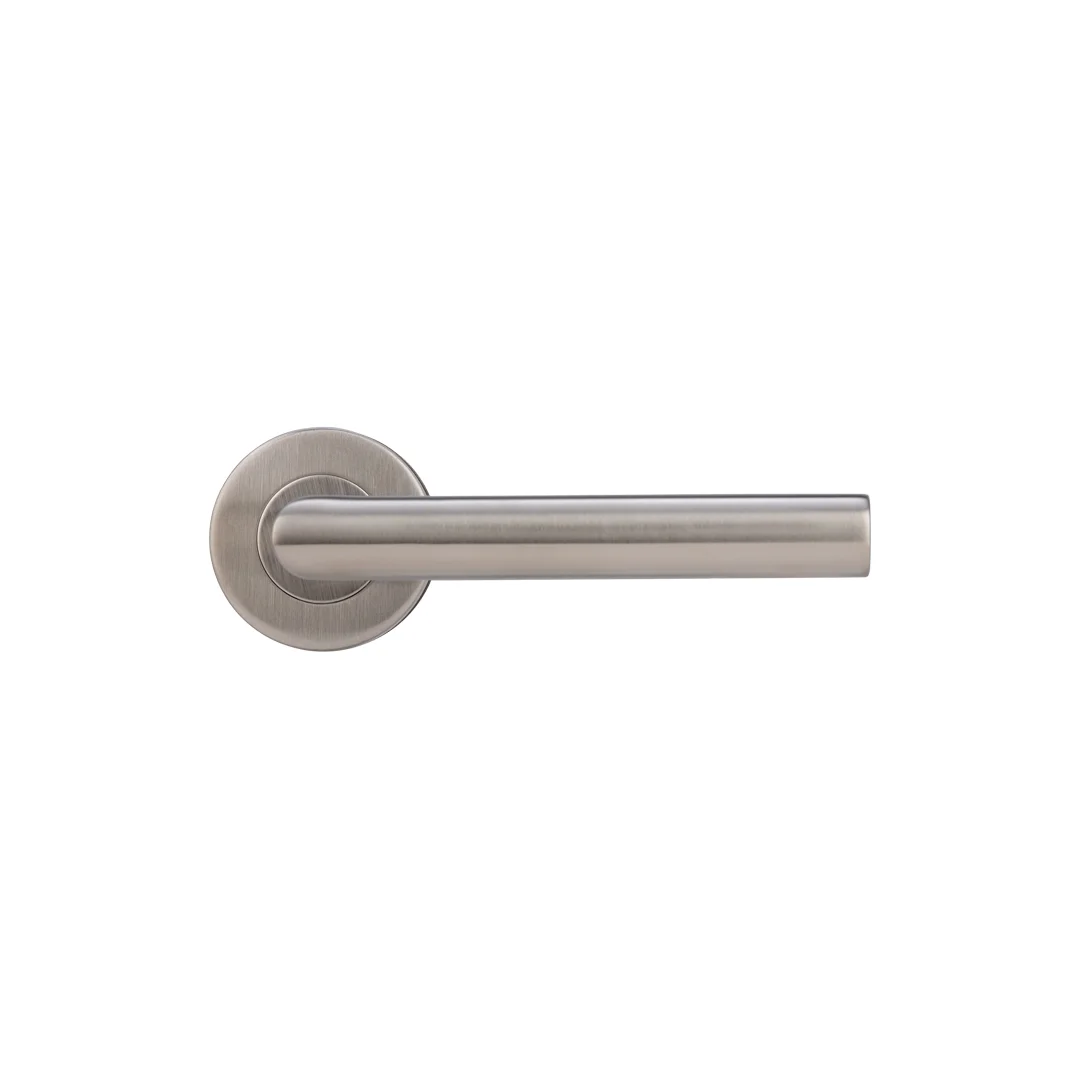

The Davis Door Handle is something that speaks ultra-modern design. Featuring a stylish round rose with concealed fittings and a strike plate that matches the handle, it’s ready to be applied to your new door for a seamless aesthetic statement.
Designed for internal passage use only and available in a range of colours, the Davis allows you to select door handles that are consistent with the finishes you already have in your home.
Please Note:
– Please do not cut door out until you receive stock.
– Davis door handles cannot be installed onto existing doors due to the back plate being smaller in diameter than standard door handles. Please refer to the specification sheet to ensure this handle is suitable for your door.
– Davis Door Handle Striker Plate suits 11mm maximum architrave – if the architrave exceeds the maximum you may require an extended striker plate. Extended striker plates are unavailable at ABI.
Features:
– Stainless Steel Construction
– Stylish Modern Design
– Matching Strike Plate
– Passage set only
Dimensions:
– Length: 135.5mm +/- 1.5mm
– Projection: 68mm +/- 1.5mm
– Backplate Diameter: 53mm
Browse our complete range of stainless steel door handles.
Shop Other Colour Options
Shop Other Colour Options
Product Info
304 Stainless Steel
Ease of Cleaning
Ease of Installation
Stainless Steel
At ABI, we use the highest quality materials and colouring processes to ensure a durable and timeless finish that you will love for years to come. Like many other materials, the colour may appear differently from product to product due to lighting within the installation location and reflection on products with different surfaces (flat and curved).
While we do our best to ensure consistency between batches and use strict colour toning and matching quality procedures to lessen variations, we acknowledge that there may be minor variations between batches. We encourage you to check over your items once received to ensure that you are satisfied with the finish. Should you receive anything of concern, our team is here to help!
| SKU | 12978 |
| Weight | 0.71kg |
| Brand | ABI Interiors |
| Construction | Stainless Steel |
| Dimensions (mm) | Handle Length: 135.5mm +/- 1.5mm Projection: 68mm +/- 1.5mm Backplate Diameter: 53mm |
| Hardware | Mounting Hardware included |
| Mount Type | Front. Sets can be mounted left or right handed. (passage set only) |
| What's In The Box | 2 x Handles 2 x Cover plates 1 x Latch 1 x Latch bolt 2 x Screw caps 8 x Screws 2 x Connection screws 1 x Striker plate cover 1 x Striker plate insert |
Specification guides can be found under the Downloads tab.
| PRODUCT DESCRIPTION | RESIDENTIAL WARRANTY | NON-RESIDENTIAL WARRANTY | OUTDOOR WARRANTY | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name & Finish | SKU | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other |
| Davis Door Handle - Stainless Steel | 12978 | 10 | 2 | - | 2 | 2 | 1 | - | 1 | - | - | - | - |
Product Documents
| Davis Door Handle - Specification |  |
3D Files
| DWG | |
| IFC - High Poly | |
| RFA | |
| IFC - Low Poly | |
Product FAQs
Can the door handle be installed on existing doors?
Answer: Unfortunately, this product cannot be used on existing doors. The install will need to be applied to a new door.
Can this product be used externally/outside?
Answer: ABI’s warranty does not cover external use due to the coatings being put under much harsher conditions and UV light. However, the structural integrity of the Door Handle would be fine.
Does the door handle have a privacy option?
Answer: No, this handle is for passage doors only and therefore doesn’t have a privacy option.
Can you use the Davis as a dummy door handle?
Yes, you can install the Davis as a dummy door handle, (please refer to the installation guide for further guidance).
Can I start the install process before I receive the product?
We do not recommend cutting out the door until you receive this product.
We have recently improved the latch design for the Davis Door Handle. This improvement is to help ease of installation and reduce the cost of labour. Please note the product design is visually the same.
This is a transitional process and implementation timing will vary for each Finish due to different stock levels. For this reason we strictly recommend not cutting out the door until you receive this product.
