Sola Shower Top Diverter - Antique Slate
SKU: 17802
Free Delivery on Orders Over $1000!
Sola Shower Top Diverter - Antique Slate
SKU: 17802
Free Delivery on Orders Over $1000!
Colour: Antique Slate
Product Details

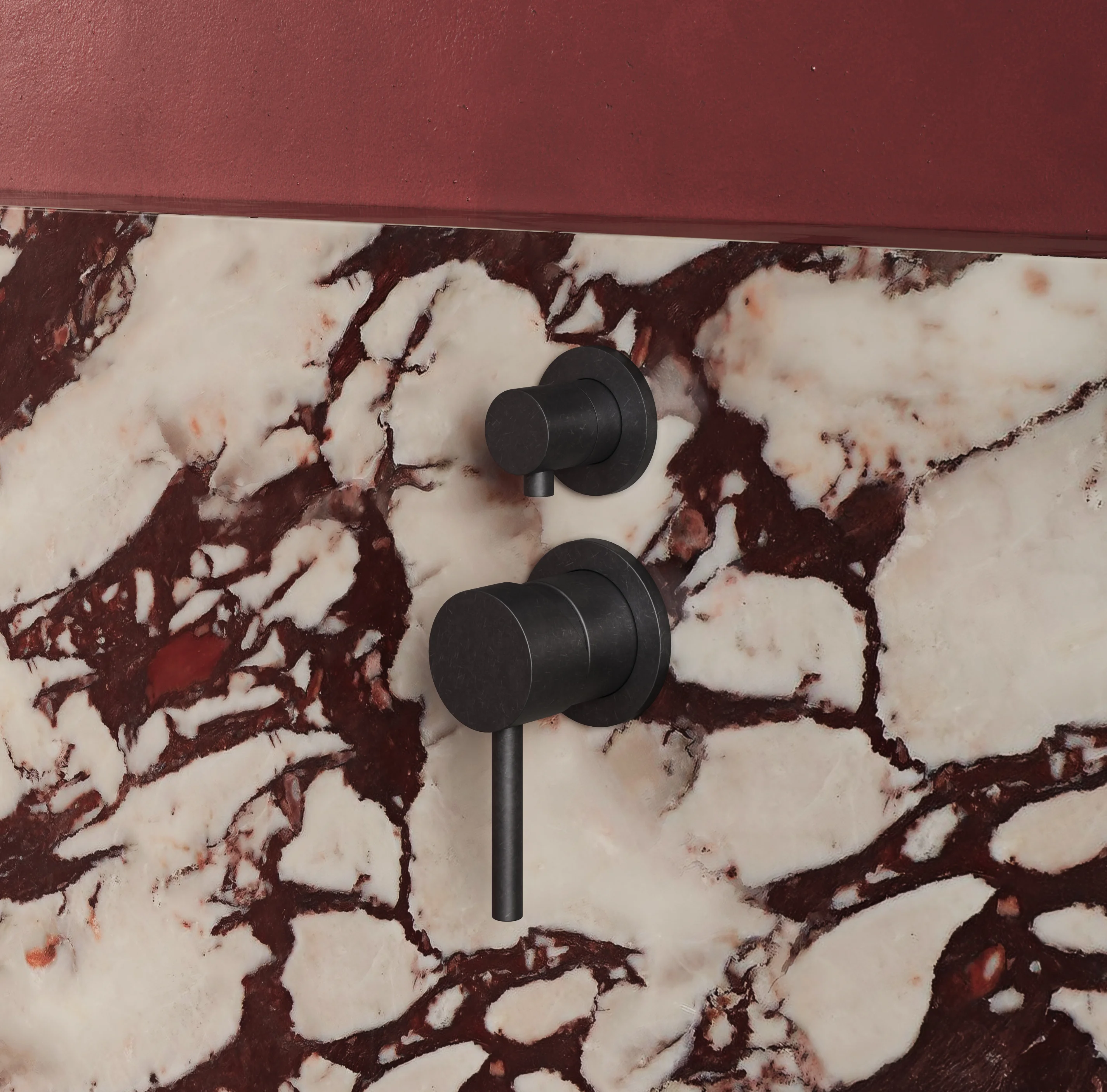

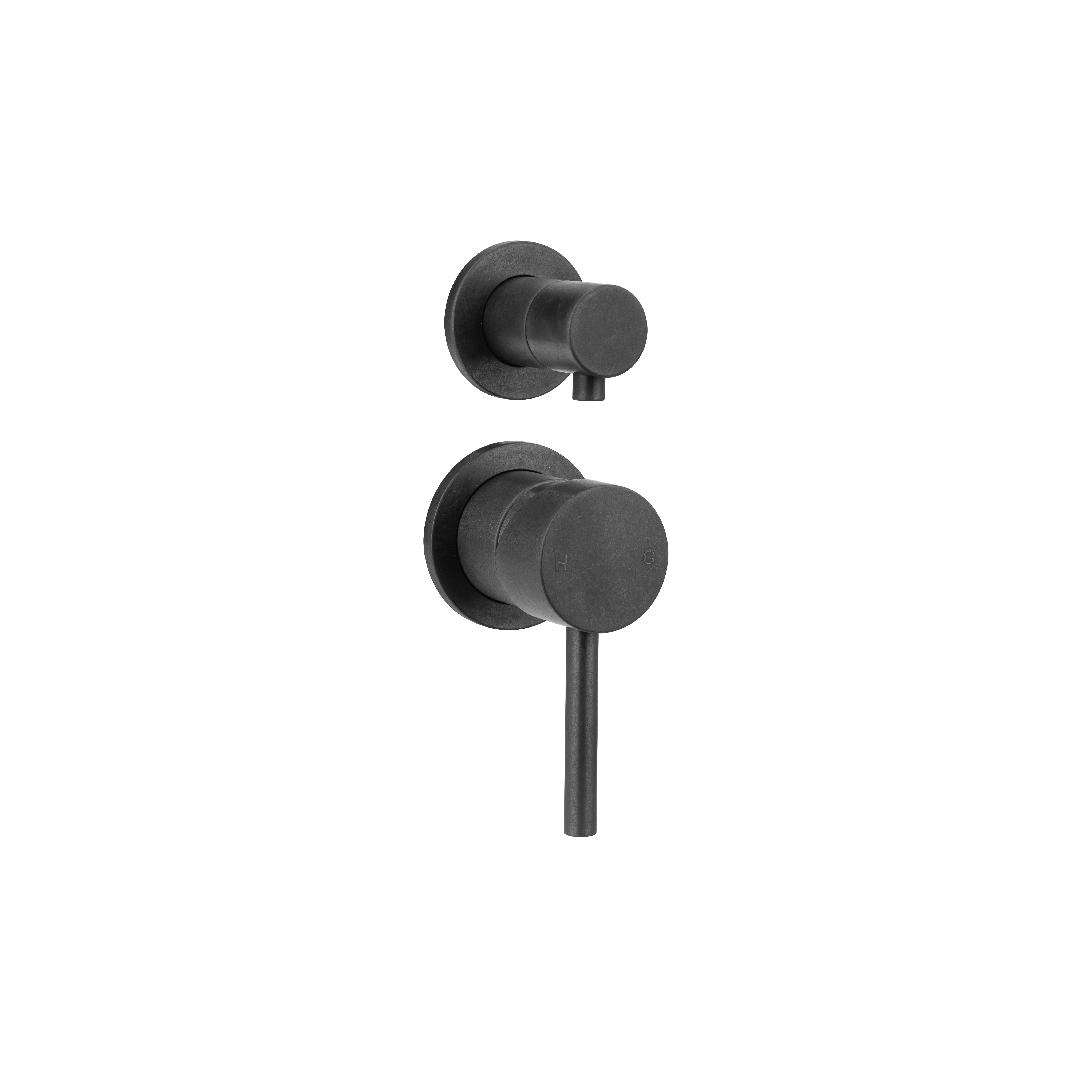

The Sola Shower Top Diverter lets you seamlessly switch between the rain head and handheld functions with a smooth turn of the knob.
Adjust the water pressure by pulling the mixer handle and control the temperature with a simple left or right twist. Constructed from 316 stainless steel, it offers superior resistance to corrosion and rust, making it a durable choice for both indoor and outdoor spaces.
Crafted using our exclusive 3-step process that integrates ceramic and vibrational technology with the superior durability of advanced PVD, this finish features artisanal texture that exudes organic elegance. Its luxurious, hand-crafted feel sets it apart from more conventional brushed finishes, making it a striking statement piece that enhances both modern and traditional interiors.
Please note:
– Due to the organic and handcrafted nature of our antique finish, subtle variations in colour, tone, and texture may occur, adding to the unique character of each piece.
Features:
– ABI Interiors’ exclusive 3-step tumbling process, using ceramic and vibrational technology.
– ABI’s PVD (Physical Vapour Deposition) Coating.
– 316 Stainless Steel construction offers durability for indoor, outdoor and commercial use.
– Rust-resistant with anti-corrosive properties.
– Precise pressure control.
– Easily switch between rain and handheld shower.
Dimensions:
– Handle Diameter: 28mm
– Handle Depth: 32-54mm
– Backplate Diameter: 50mm
– Sleeve Diameter: 28mmm
Product Features
316 Stainless Steel
Artisanal Texture
Anti-Corrosion
Material
Construction
316 Stainless Steel
Finish/Coating
(PVD) Antique Slate - ABI’s Heat Shield – Industrial Grade Electro Colouring System (Physical Vapour Deposition)
*We implement strict quality procedures to minimise colour variations, however we acknowledge that there may be minor differences between batches. We encourage you to check over your items once received to ensure that you are satisfied with the finish. Should you receive anything of concern, our team is here to help!
For more information on our finish quality
Specifications
| SKU | 17802 |
| Weight | 1.663kg |
| Brand | ABI Interiors |
| Finish/Coating | (PVD) Antique Slate - ABI’s Heat Shield – Industrial Grade Electro Colouring System (Physical Vapour Deposition) |
| Construction | 316 Stainless Steel |
| Dimensions | – Handle Diameter: 28mm – Handle Depth: 32-54mm – Backplate Diameter: 50mm – Sleeve Diameter: 28mmm |
| Function | Turn Knob |
| Whats in the box? | In-Wall Kit (required for rough-in): 1 x In-Wall Minimal Diverter Mixer Body 2 x Fixing Screw 1 x Diverter Cartridge 1 x Mixer Cartridge 1 x Locking Nut Handle Kit (required for fit-off): 1 x Short (15mm) Sleeve 1 x Long (30mm Sleeve 1 x Dome 1 x Backplate 1 x Mixer Handle 1 x Grub Screw 1 x Allen Key Diverter Kit (required for fit-off): 1x Back diverter plate 1x Diverter sleeve 1x Plasticspacer 1x Diverter handle 1x Diverter stick |
Specification guides can be found under the Downloads tab.
Downloads
Product Documents
| Sola Top Shower Diverter - Specification |  |
Bim Files
| View Product |  |
| View Collection | |
| View Library | |
Antique Slate
Each Antique product undergoes ABI’s exclusive three-step tumbling process, which uses ceramic and vibrational technology to create a distinctly organic texture. This is enhanced with ABI HeatShield PVD electro-colouring, delivering superior resistance to tarnishing, corrosion, and everyday wear. Due to the nature of this process, subtle variations in finish will occur. No two products are exactly the same, allowing for individuality in your design.
Like many materials, colour may vary slightly between products due to lighting conditions and how different surfaces (flat or curved) reflect light. We recommend checking your items upon delivery to ensure you’re happy with the finish. If anything isn’t quite right, our team is always here to help.
| PRODUCT DESCRIPTION | RESIDENTIAL WARRANTY | NON-RESIDENTIAL WARRANTY | OUTDOOR WARRANTY | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name & Finish | SKU | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other |
| Sola Shower Diverter - Antique Slate | 17802 | 25 | 5 | 7 | 2 | 10 | 1 | 5 | 1 | 25 | 2 | 7 | 1 |
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
Product FAQs
Can this be used indoors and outdoors?
Yes. Crafted from anti-corrosive 316 stainless steel, the Sola Shower Diverter is suitable for both indoor and outdoor use.
Can I mix and match the Sola Shower Diverter with other products?
Yes, the Sola Shower Diverter pairs effortlessly with any of our shower rails, rain shower heads, handheld showers, droppers, and arms. It’s designed for seamless integration with the entire Sola range.
Can I alternate the positioning of the Sola Shower Diverter knob?
Yes, the diverter knob can be positioned either facing up or facing down, allowing you to customise its placement to suit your personal preference.
Will antique finishes patina/age over time?
No, our engineered Antique finish combines organic texture with advanced PVD coating for long-lasting durability that resists tarnishing or patina when properly maintained. It provides the tarnished appearance of aged metal without the unpredictability of further patination, making it an excellent option for those seeking consistency in their design.
Are the Antique finishes lead-free?
This product is certified lead-free in accordance with the lead free requirements contained in the National Construction Code Volume Three.
What is the difference between brushed and antique finishes?
Our Antique products undergo a unique 3-step tumbling process to create a distinctive artisanal texture with a beautifully lived-in feel. Unlike our signature brushed finishes, which offer a radiant shine, the Antique Collection embraces a more organic, matte appearance. This unique finish creates a striking statement, effortlessly complementing modern and traditional interiors.
