Product Details

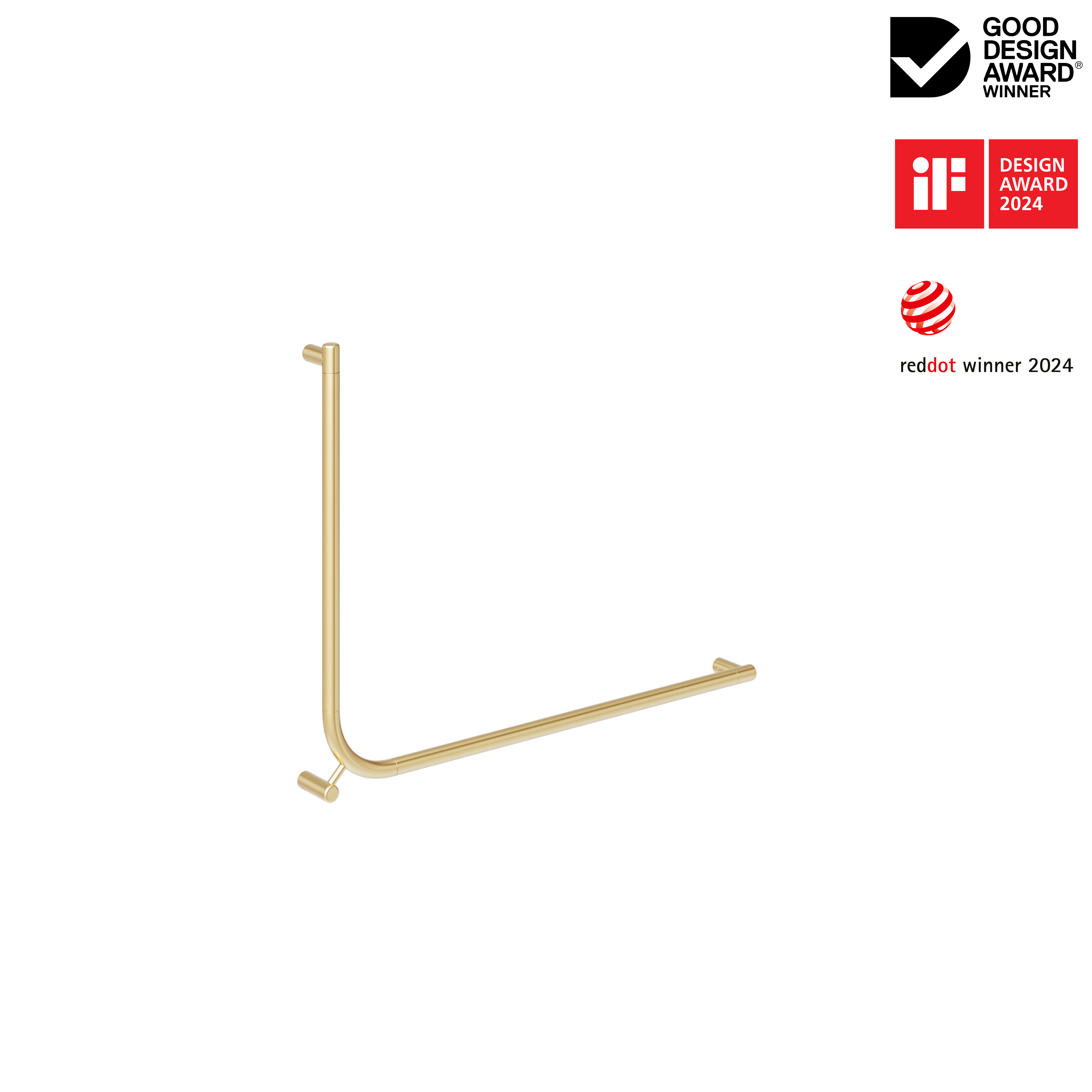

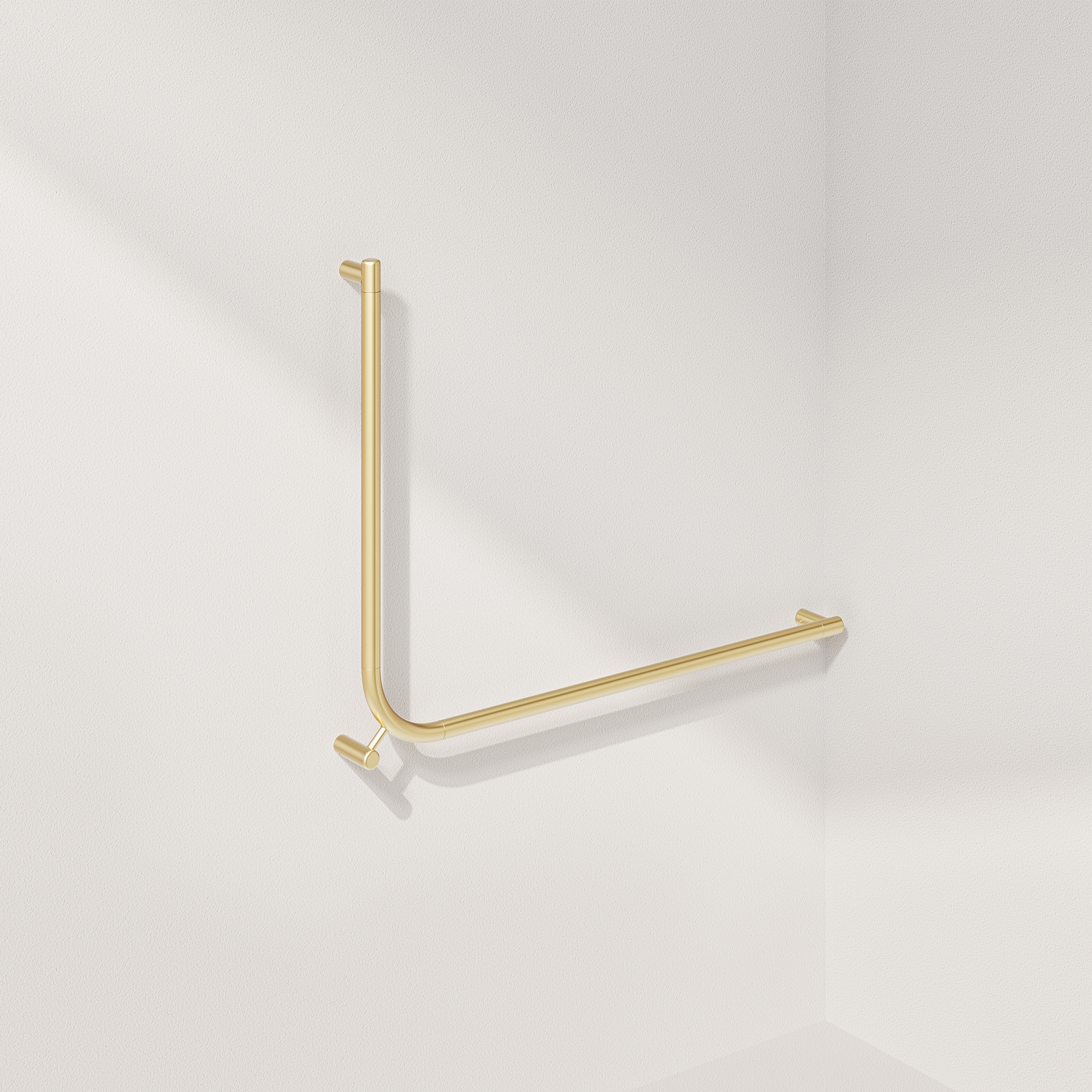

Constructed from 316 stainless steel, our wall-mounted Aliro Accessible 90° Grab Rail combines reliable support with highly durable, anti-corrosive qualities.
Its convenient, modular configuration ensures flexibility for both left and right orientations.
Please Note:
– Our Aliro Accessible 90° Grab Rail is designed and tested to meet AS1428.1:2021 Standards. It is the responsibility of the purchaser to consult a professional prior to installation to ensure the products are installed in a manner that maintains their compliance with the relevant Standards and meets all applicable regulatory requirements. ABI Interiors accepts no liability for any non-compliance with the Standards that occurs as a result of installation that is not in accordance with ABI’s installation guidelines or the Standards, or any failure to meet any regulatory requirements.
Features:
– Highly durable 316 stainless steel construction offers superior anti-corrosive properties that include chloride resistance.
– Flexible configuration allows for versatile installation.
– Physical Vapour Deposition (PVD) coating for longevity and durability.
– Independently strength tested* and approved to ensure compliance with the AS1428.1:2021.
Dimensions:
– Length: 1037mm
– Grab Rail Diameter: 32mm
– Projection: 93mm
– Height: 822mm
Seperate Grab Rail:
– Length: 357mm
– Grab Rail Diameter: 32mm
– Projection: 87mm
*All of ABI Interiors’ Australian Standard compliance testing is performed through the National Association of Testing Authorities (NATA).
Shop Other Colour Options
Shop Other Colour Options
Product Info
Accessible
316 Stainless Steel
.svg){kind=icon}
PVD (Physical Vapour Deposition)
| SKU | 14740 |
| Weight | 5.7kg |
| Brand | ABI Interiors |
| Finish/Coating | (PVD) Brushed Brass – ABI’s Heat Shield – Industrial Grade Electro Colouring System (Physical Vapour Deposition) |
| Construction | 316 Stainless Steel |
| Dimensions (mm) | Length: 1037mm Grab Rail Diameter: 32mm Projection: 93mm Height: 822mm Seperate Grab Rail: Length: 357mm Grab Rail Diameter: 32mm Projection: 87mm |
| Mounting Hardware Included | M10 x 75mm Coach Screw |
| What's In The Box | Grab Rail Kit: 4 x End Bracket 1 x 610mm Rail 1 x 90 degree Bracket 1 x 825mm Rail 1 x 225mm Rail Fixing Kit: 5 x Fixing Bracket 5 x Coach Screw 5 x O Ring 5 x Washer 11 x Grub Screw |
| ETA |
Specification guides can be found under the Downloads tab.
| PRODUCT DESCRIPTION | RESIDENTIAL WARRANTY | NON-RESIDENTIAL WARRANTY | OUTDOOR WARRANTY | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name & Finish | SKU | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other |
| Aliro Accessible 90° Grab Rail - Brushed Brass | 14740 | 25 | 5 | - | 2 | 5 | 1 | - | 1 | 25 | 1 | - | 1 |
Product Documents
| Aliro Accessible 90° Grab Rail - Specification |  |
Bim Files
| View Product |  |
| View Collection | |
| View Library | |
Product FAQs
What is the difference between 90° and 140° grab rail styles and when should I choose each option?
Customer preferences are based on room sizing and dimensions.
The 90° Grab Rail is an option that requires less space compared to the 140° Grab Rail which requires greater space clearance. It is the responsibility of the purchaser to consult a professional prior to installation for guidance.
