Aliro Accessible 90° Grab Rail - Brushed Copper

SKU: 14741

in stock

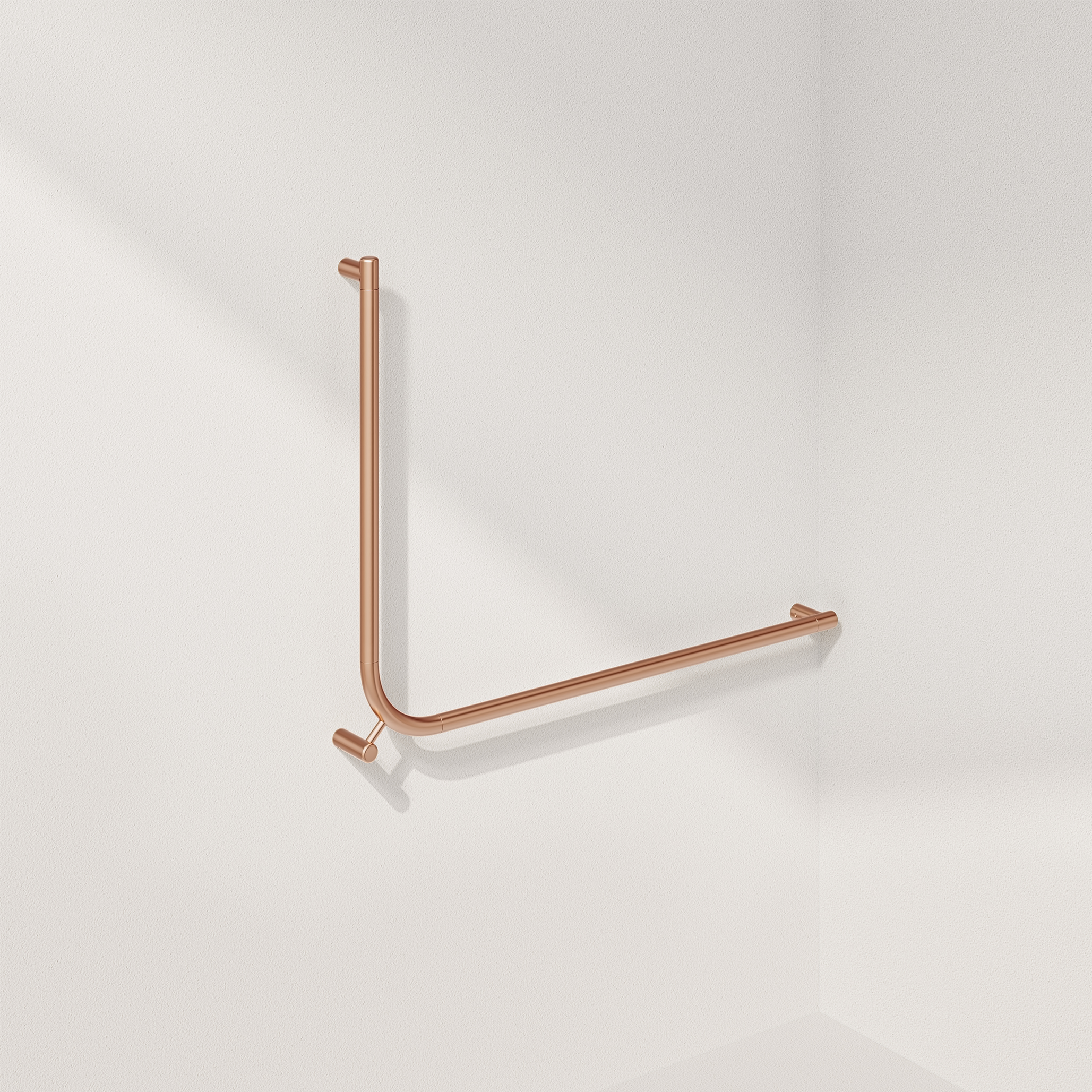

Aliro Accessible 90° Grab Rail - Brushed Copper

SKU: 14741

in stock


$924.90
Add to Cart
Also Bought With
Chevron-Down

Product Details

Constructed from 316 stainless steel, our wall-mounted Aliro Accessible 90° Grab Rail combines reliable support with highly durable, anti-corrosive qualities.

Its convenient, modular configuration ensures flexibility for both left and right orientations.

Please Note:

– Our Aliro Accessible 90° Grab Rail is designed and tested to meet AS1428.1:2021 Standards. It is the responsibility of the purchaser to consult a professional prior to installation to ensure the products are installed in a manner that maintains their compliance with the relevant Standards and meets all applicable regulatory requirements. ABI Interiors accepts no liability for any non-compliance with the Standards that occurs as a result of installation that is not in accordance with ABI’s installation guidelines or the Standards, or any failure to meet any regulatory requirements.

 Features:

– Highly durable 316 stainless steel construction offers superior anti-corrosive properties that include chloride resistance.
– Flexible configuration allows for versatile installation.
– Physical Vapour Deposition (PVD) coating for longevity and durability.
– Independently strength tested* and approved to ensure compliance with the AS1428.1:2021.

Dimensions:

– Length: 1037mm
– Grab Rail Diameter: 32mm
– Projection: 93mm
– Height: 822mm

Seperate Grab Rail:

– Length: 357mm
– Grab Rail Diameter: 32mm
– Projection: 87mm

*All of ABI Interiors’ Australian Standard compliance testing is performed through the National Association of Testing Authorities (NATA).



Product Info

  • Features
  • Colouring
  • Specifications
  • Warranty
  • Environment
  • Downloads
Accessible
316 Stainless Steel
PVD (Physical Vapour Deposition)
Brushed Copper

At ABI, we use the highest quality materials and colouring processes to ensure a durable and timeless finish that you will love for years to come. Like many other materials, the colour may appear differently from product to product due to lighting within the installation location and reflection on products with different surfaces (flat and curved).

While we do our best to ensure consistency between batches and use strict colour toning and matching quality procedures to lessen variations, we acknowledge that there may be minor variations between batches. We encourage you to check over your items once received to ensure that you are satisfied with the finish. Should you receive anything of concern, our team is here to help!

SKU 14741
Weight 5.7kg
Brand ABI Interiors
Finish/Coating (PVD) Brushed Copper – ABI’s Heat Shield – Industrial Grade Electro Colouring System (Physical Vapour Deposition)
Construction 316 Stainless Steel
Dimensions (mm) Length: 1037mm
Grab Rail Diameter: 32mm
Projection: 93mm
Height: 822mm

Seperate Grab Rail:
Length: 357mm
Grab Rail Diameter: 32mm
Projection: 87mm



Mounting Hardware Included M10 x 75mm Coach Screw
What's In The Box Grab Rail Kit:

4 x End Bracket
1 x 610mm Rail
1 x 90 degree Bracket
1 x 825mm Rail
1 x 225mm Rail

Fixing Kit:

5 x Fixing Bracket
5 x Coach Screw
5 x O Ring
5 x Washer
11 x Grub Screw
ETA

Specification guides can be found under the Downloads tab.

PRODUCT DESCRIPTION RESIDENTIAL WARRANTY NON-RESIDENTIAL WARRANTY OUTDOOR WARRANTY
Name & Finish SKU Structure Finish Cartridge Other Structure Finish Cartridge Other Structure Finish Cartridge Other
Aliro Accessible 90° Grab Rail - Brushed Copper 14741 25 5 - 2 5 1 - 1 25 1 - 1
Bim Files
View Library Download

Product FAQs


What is the difference between 90° and 140° grab rail styles and when should I choose each option?

Customer preferences are based on room sizing and dimensions.

The 90° Grab Rail is an option that requires less space compared to the 140° Grab Rail which requires greater space clearance. It is the responsibility of the purchaser to consult a professional prior to installation for guidance.
