Aliro Accessible Pneumatic Flush Button & In-Wall Cistern - Brushed Brass
SKU: 17764
L08437| WELS: 4 Star | Litres / min: Nominal Average Flush: 3.5L, Full Flush 4.7L, Half Flush 3.2L
Free Delivery on Orders Over $1000!
Aliro Accessible Pneumatic Flush Button & In-Wall Cistern - Brushed Brass
SKU: 17764
L08437| WELS: 4 Star | Litres / min: Nominal Average Flush: 3.5L, Full Flush 4.7L, Half Flush 3.2L
Free Delivery on Orders Over $1000!
Colour: Brushed Brass
Product Details

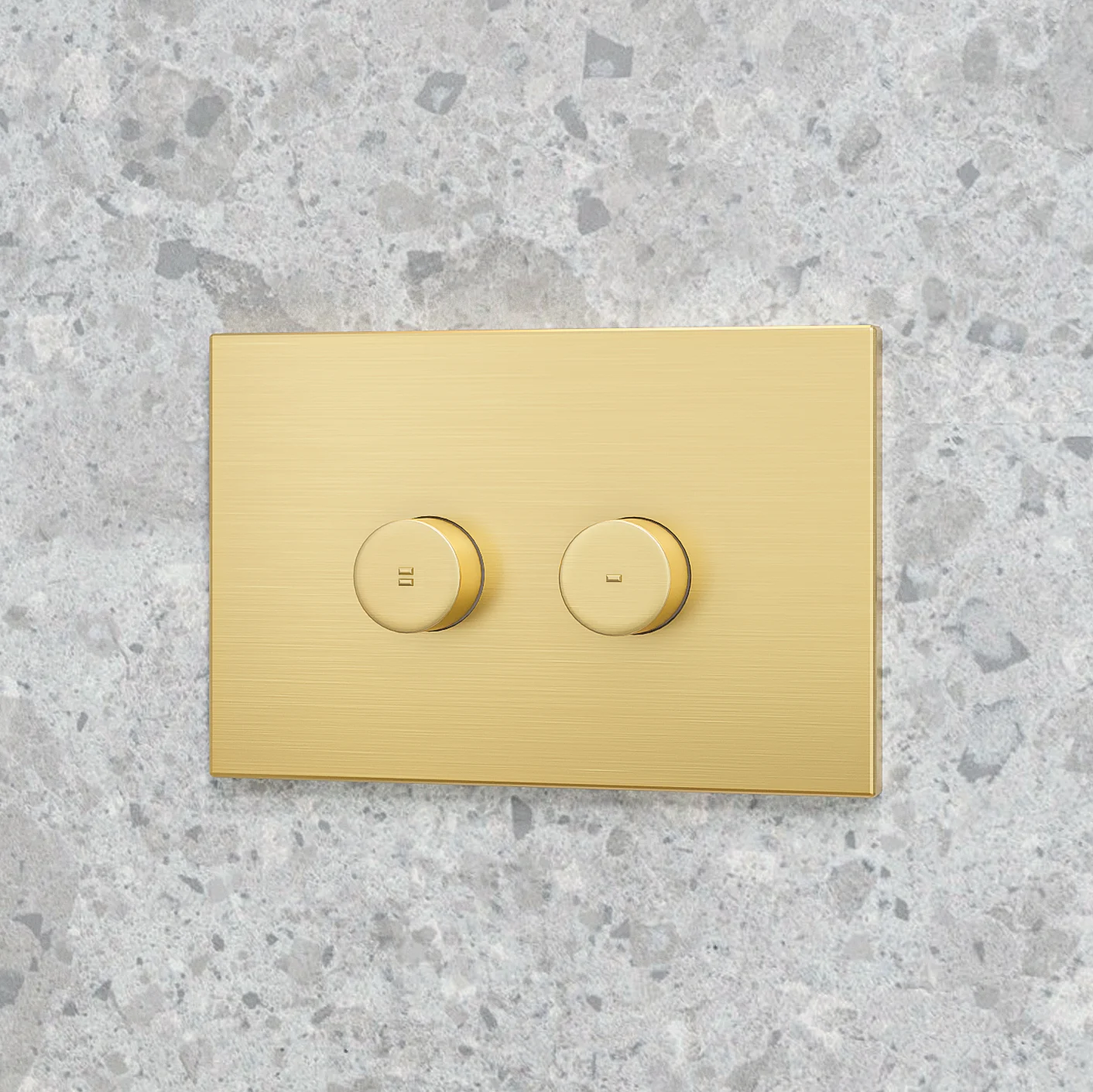

The Aliro Accessible Pneumatic Flush Button & In-Wall Cistern combines a wall-mounted flush button and a concealed in-wall cistern for a minimalist, accessible bathroom solution. The flush button cover is crafted from 304 stainless steel and finished with PVD (Physical Vapour Deposition) colouring, suitable for indoor residential and commercial use. It features dual-flush functionality and a pneumatic flushing system that uses air pressure to activate the in-wall cistern.
Product Features
304 Stainless Steel
.svg){kind=icon}
PVD (Physical Vapour Deposition)
Accessible
Material
Construction
Button: 304 Stainless Steel Cistern: HDPE Plastic
Finish/Coating
(PVD) Brushed Brass - ABI’s Heat Shield – Industrial Grade Electro Colouring System (Physical Vapour Deposition)
*We implement strict quality procedures to minimise colour variations, however we acknowledge that there may be minor differences between batches. We encourage you to check over your items once received to ensure that you are satisfied with the finish. Should you receive anything of concern, our team is here to help!
For more information on our finish quality
Specifications
| SKU | 17764 |
| Weight | 6.9kg |
| Brand | ABI Interiors |
| Finish/Coating | (PVD) Brushed Brass - ABI’s Heat Shield – Industrial Grade Electro Colouring System (Physical Vapour Deposition) |
| Construction | Button: 304 Stainless Steel Cistern: HDPE Plastic |
| Dimensions (mm) | Dimensions of Aliro Toilet Button Cover: Height: 163mm Length: 248mm Width: 36mm Dimensions of the ABI Pneumatic In-Wall Cistern: Height excluding flush pipe range: 508mm Height including flush pipe range: 670-830mm Length: 551mm Width: 80mm |
Specification guides can be found under the Downloads tab.
Downloads
Bim Files
| View Library |  |
Brushed Brass
At ABI, we use the highest quality materials and colouring processes to ensure a durable and timeless finish that you will love for years to come. Like many other materials, the colour may appear differently from product to product due to lighting within the installation location and reflection on products with different surfaces (flat and curved).
While we do our best to ensure consistency between batches and use strict colour toning and matching quality procedures to lessen variations, we acknowledge that there may be minor variations between batches. We encourage you to check over your items once received to ensure that you are satisfied with the finish. Should you receive anything of concern, our team is here to help!
4
Water Rating
Nominal Average Flush: 3.5L, Full Flush 4.7L, Half Flush 3.2L
Litres Per Minute
L08437
Registration Number
3.5L
LitresAverage Flush
L per Full Flush 4.7L
|L per Half Flush 3.2L
Product FAQs
Is this compatible with all wall-hung toilet pans, or only specific models?
This product is only compatible with floor-mounted toilet pans.
Can the cistern be installed in both timber and steel stud walls?
Yes, however, additional noggings and appropriate screws are required for this type of installation.
