L08437| WELS: 4 Star | Litres / min: Nominal Average Flush: 3.5L, Full Flush 4.7L, Half Flush 3.2L
Free Delivery on Orders Over $1000!
Product Details

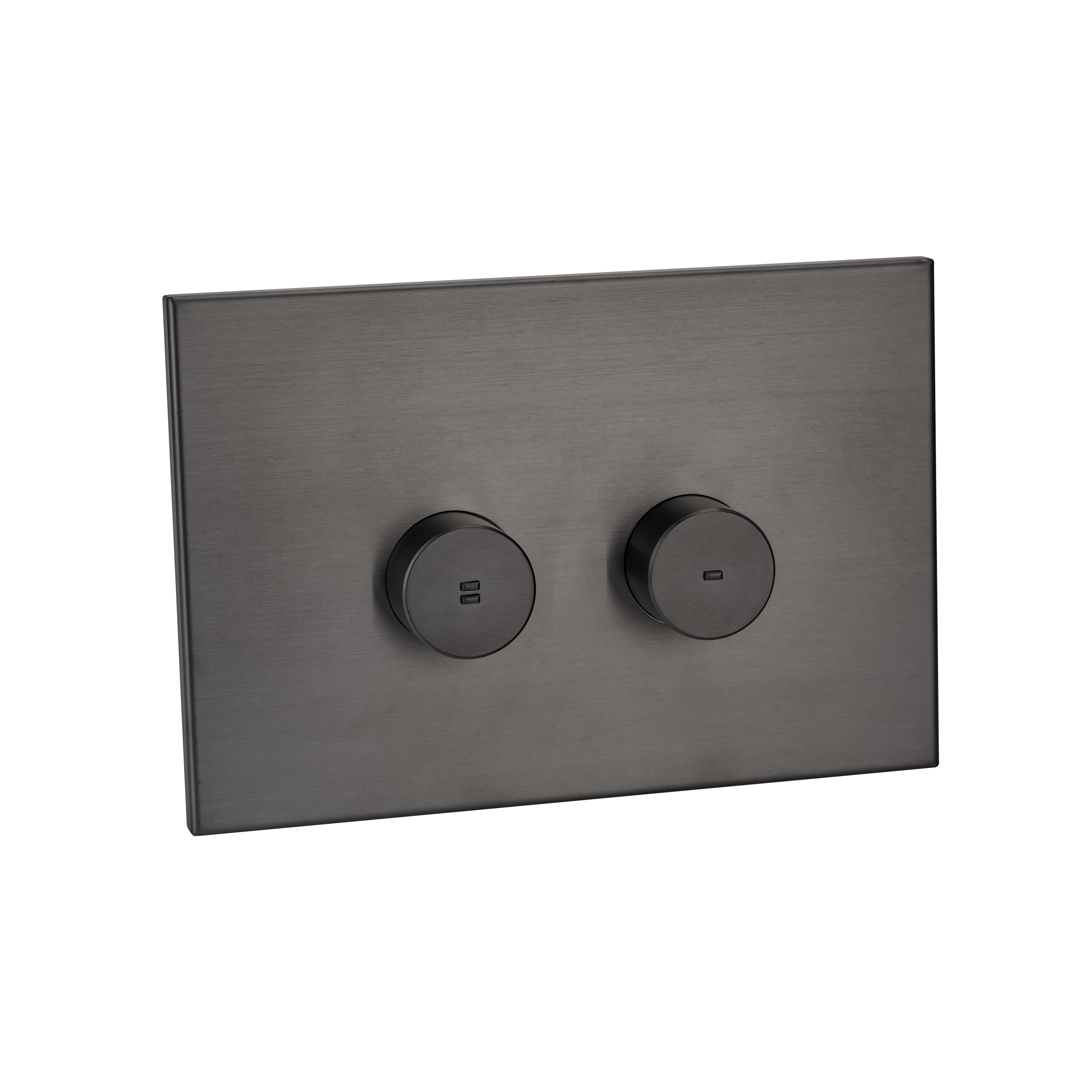

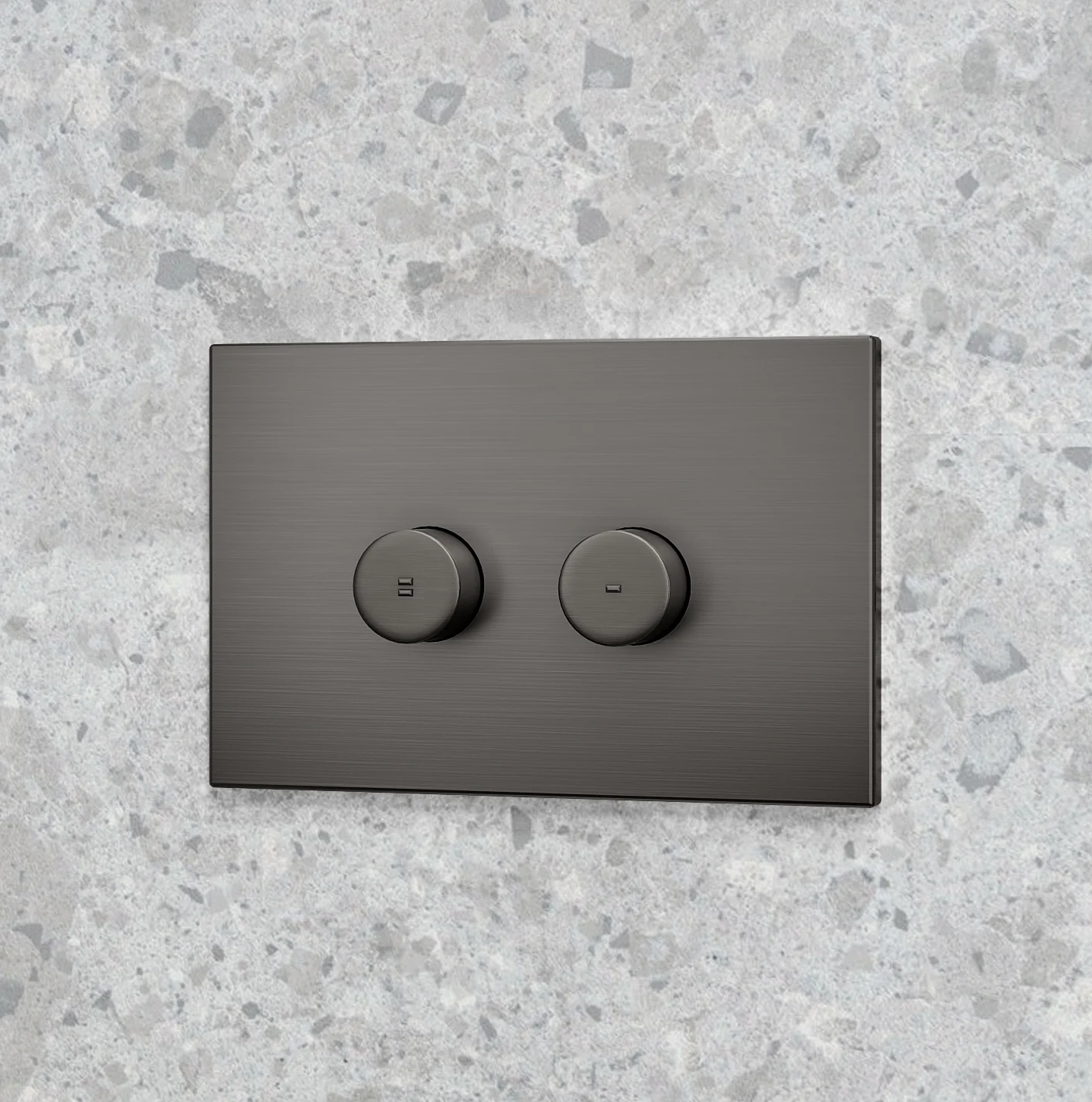

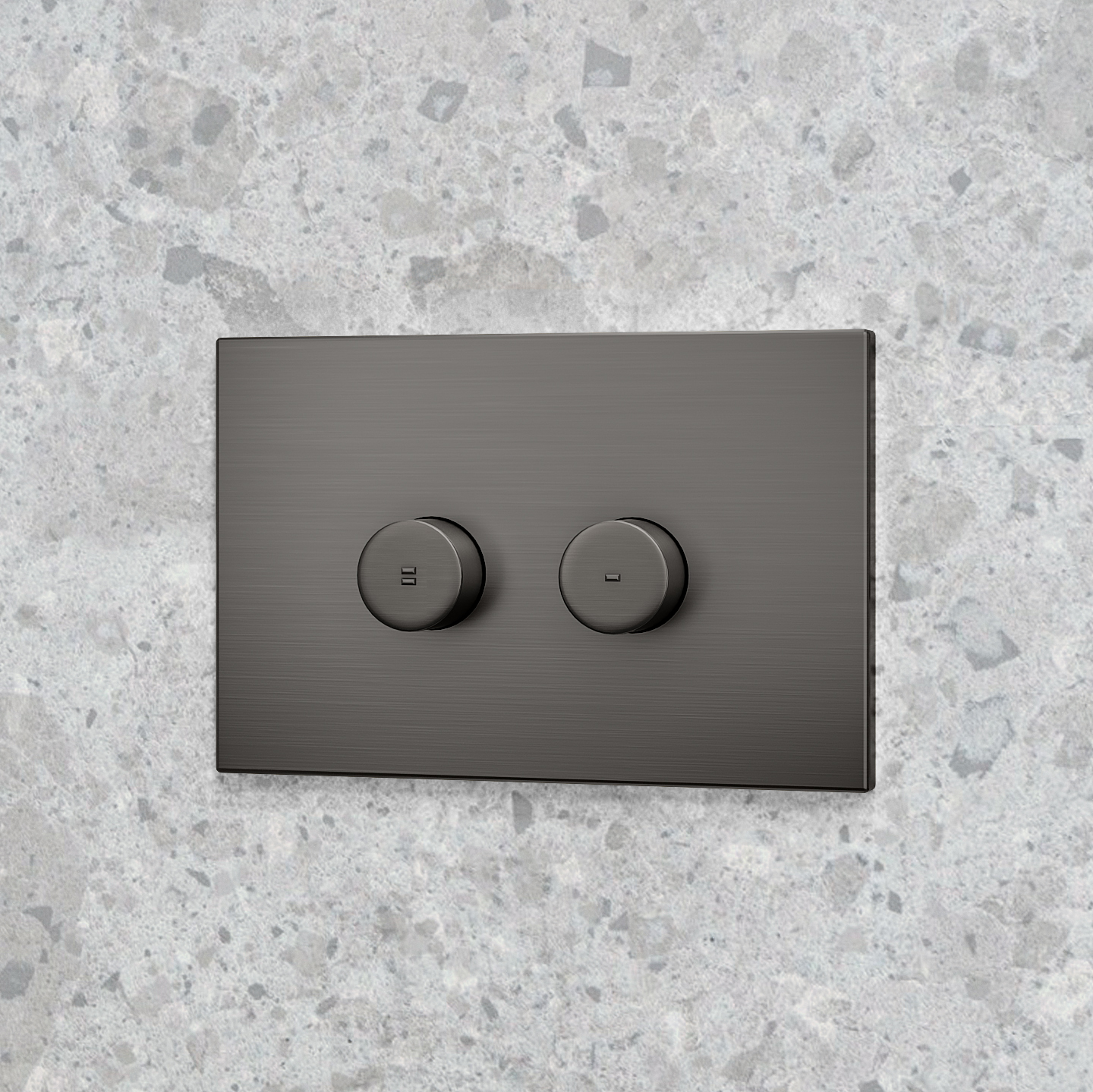

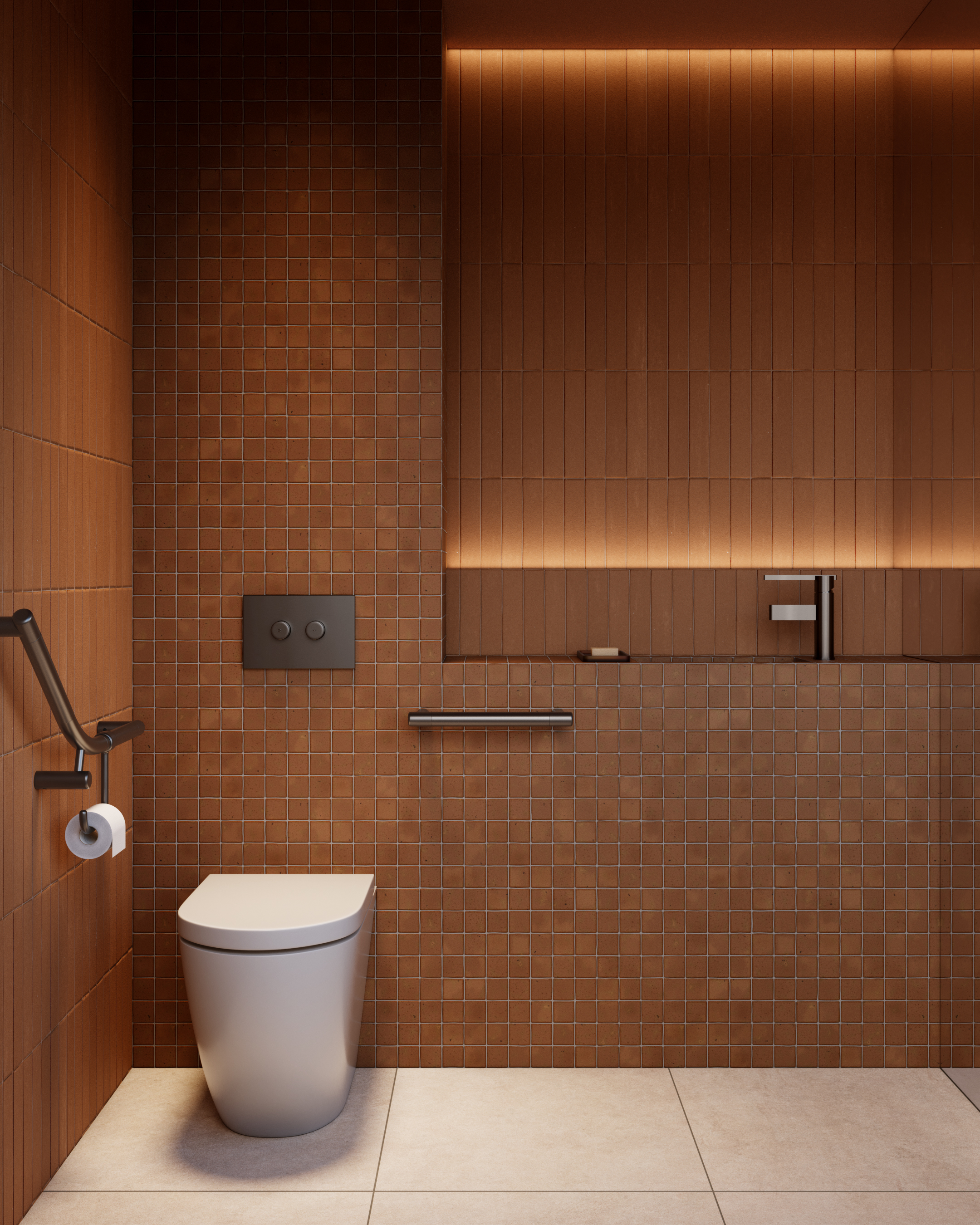

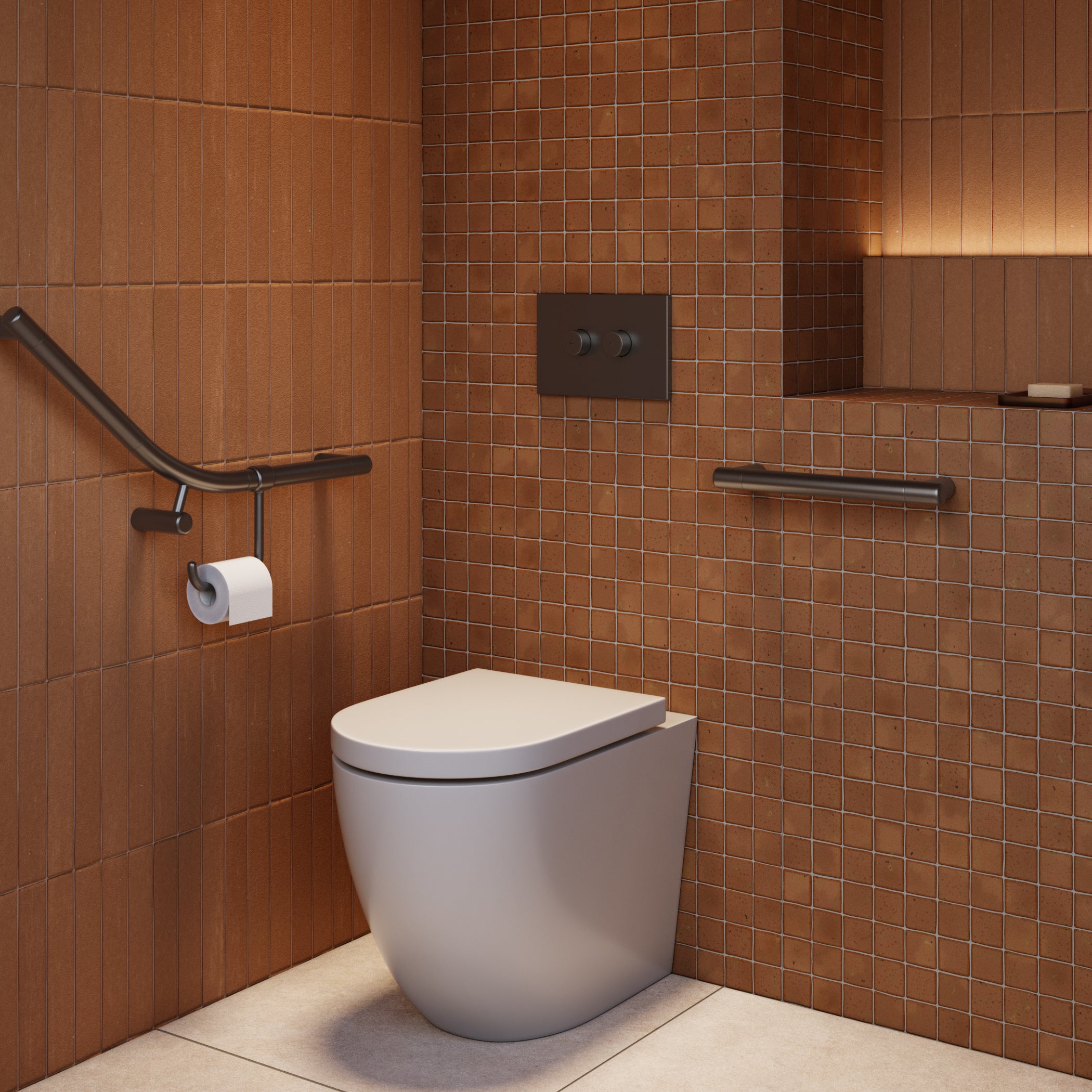

Our elegant Aliro Accessible Pneumatic Flush Button features a dual flush option and a space-saving in-wall cistern that uses air pressure to activate the flush.
The flush button cover is made from 304 stainless steel, ensuring durability for both residential and commercial use. The in-wall cistern neatly conceals the flushing system, creating a clean and seamless look.
The Aliro Accessible Pneumatic Flush Button is available in four signature finishes: brushed brass, brushed copper, brushed gunmetal, and brushed stainless steel. It is designed to complement our entire Aliro Collection.
Please Note:
– Our Aliro Accessible Pneumatic Flush Button is designed and tested to meet AS1428.1:2021 Standards. It is the responsibility of the purchaser to consult a professional prior to installation to ensure the products are installed in a manner that maintains their compliance with the relevant Standards. ABI Interiors accepts no liability for any non-compliance with the Standards that occurs as a result of installation that is not in accordance with ABI’s installation guidelines or the Standards.

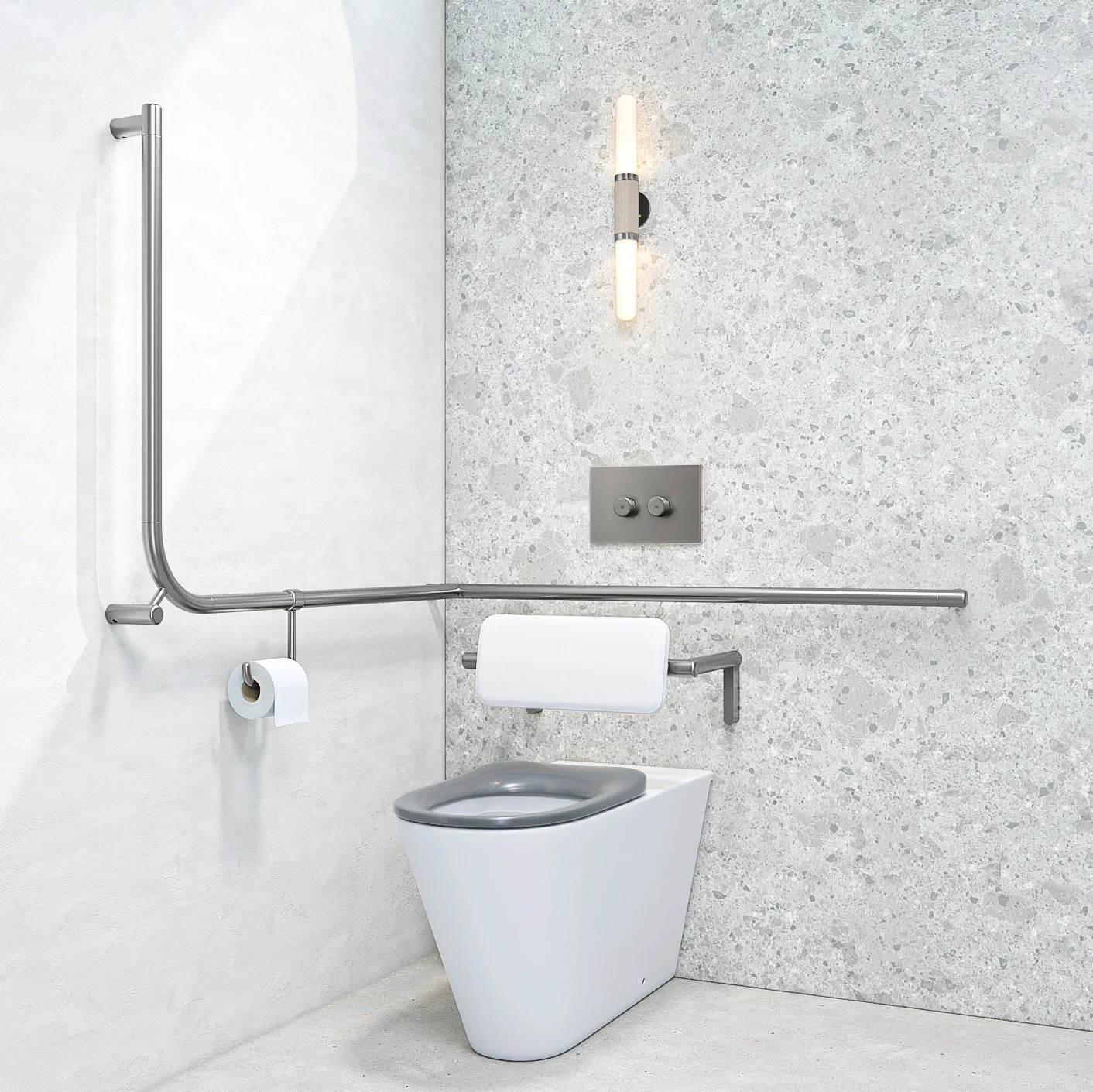

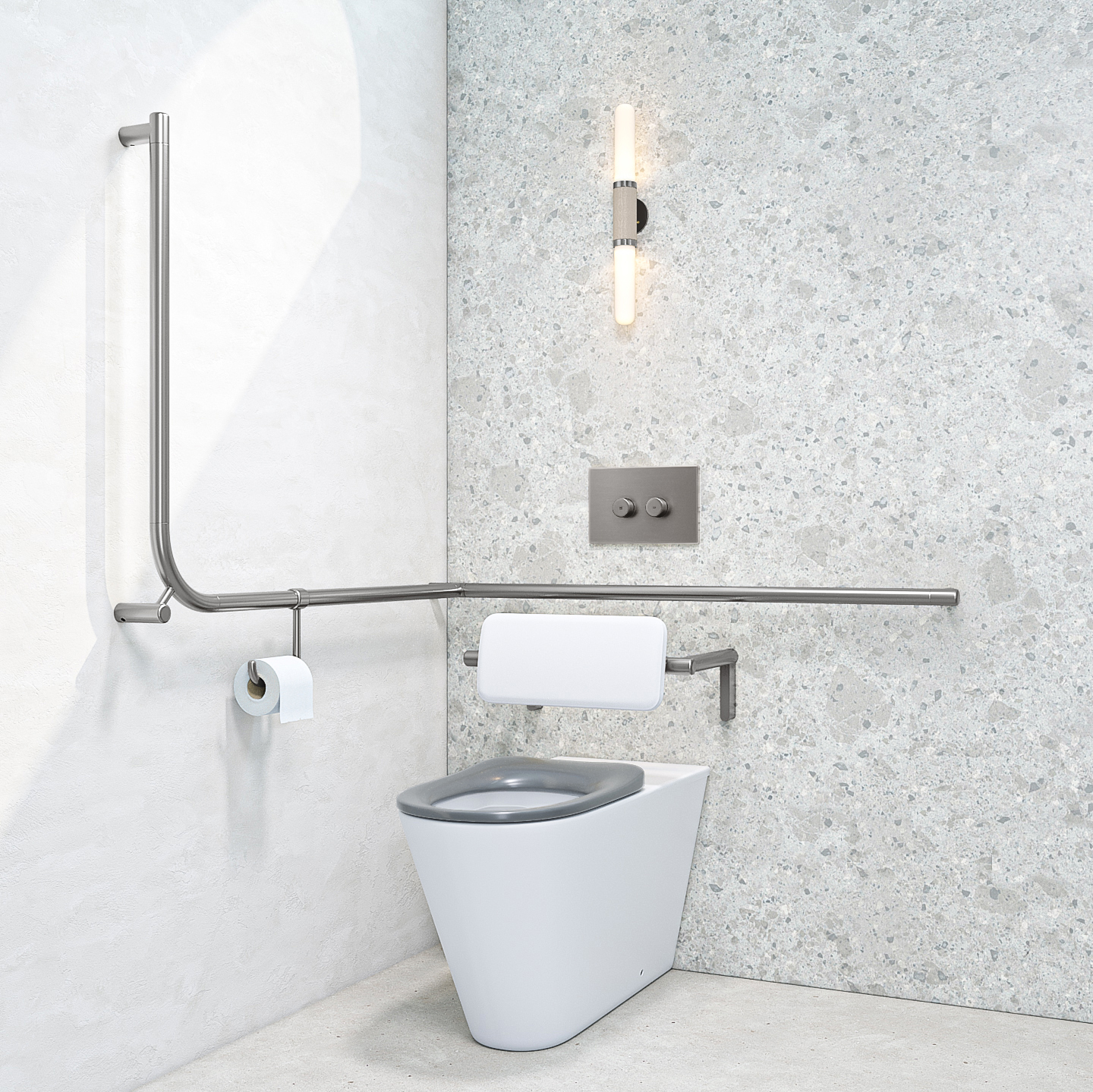

– This product is intended to be paired seamlessly with Accessible floor mounted Toilets however, it is equally compatible with all of ABI’s floor mounted toilets for Ambulant settings.
Features:
– Seamless 304 stainless steel construction flush plate
– Plastic body with iron frame cistern
– Dual flush option
– Pneumatic flush
– Available in a range of space-transforming finishes
Dimensions:

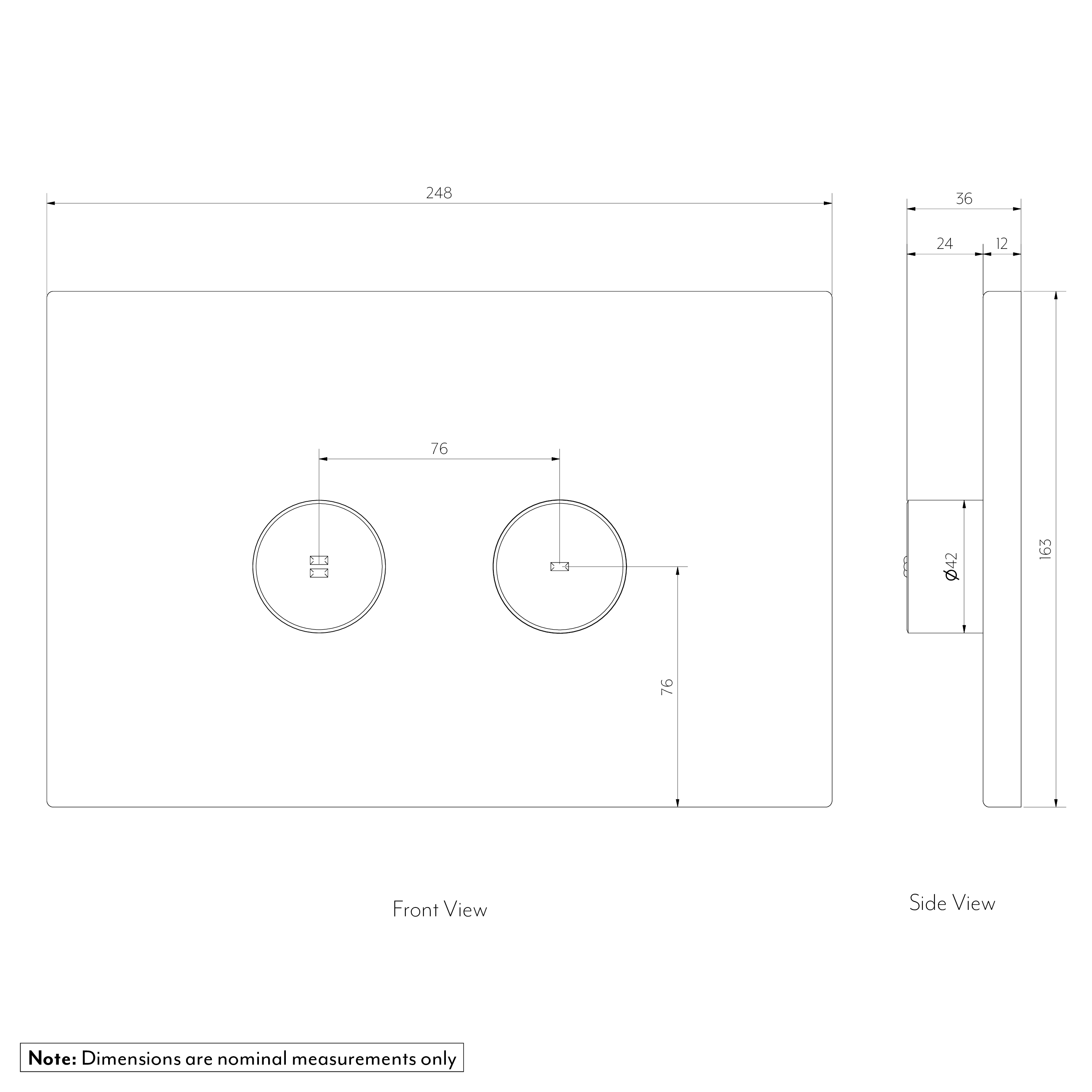

Button:
– Width: 248mm
– Height: 163mm
– Thickness: 36mm

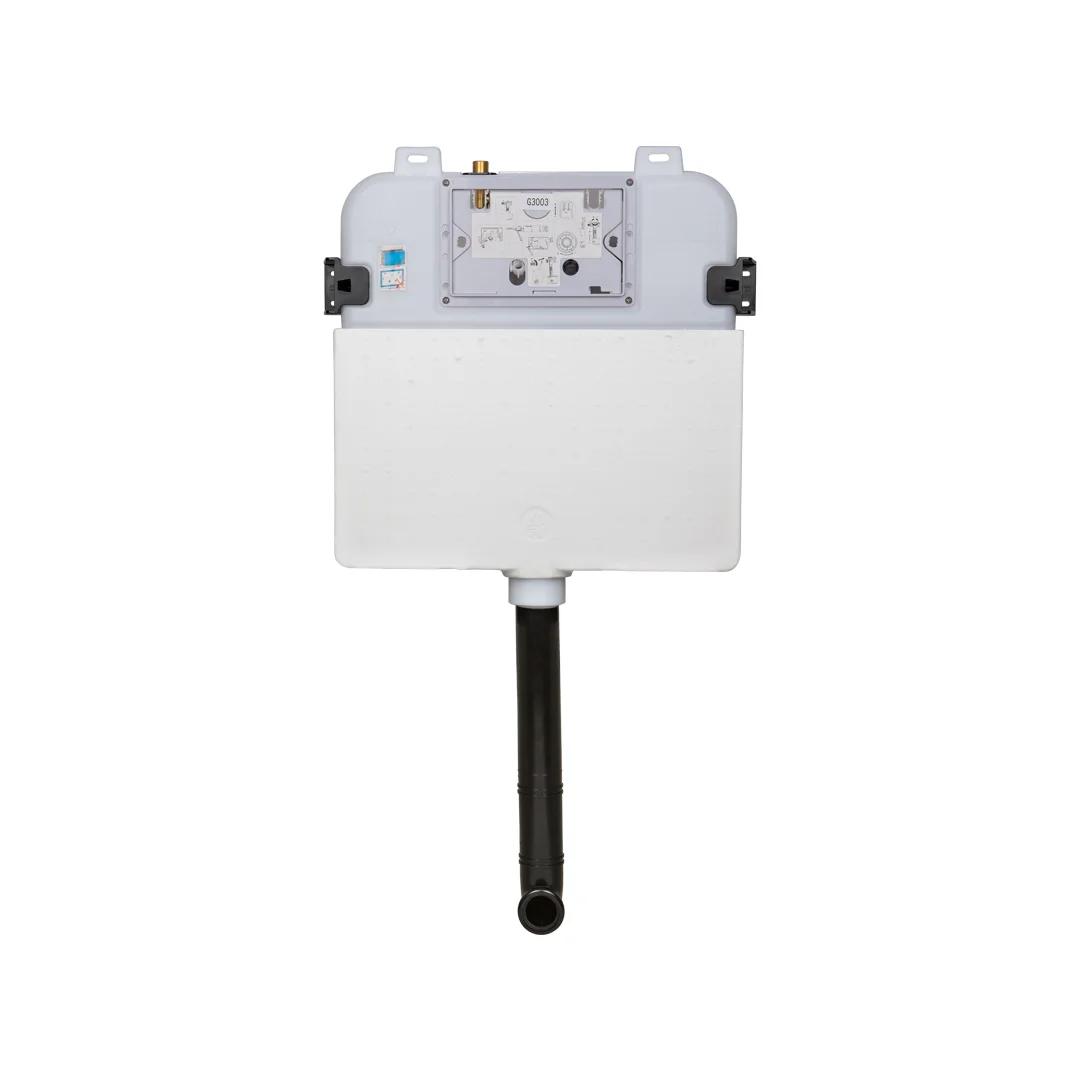

Cistern:
– Width: 551mm
– Height: 725mm — 930mm
– Thickness: 80mm
For further inspiration, explore our complete Aliro Collection.
Shop Other Colour Options
Shop Other Colour Options
Product Info
304 Stainless Steel
.svg){kind=icon}
PVD (Physical Vapour Deposition)
Accessible
Brushed Gunmetal
At ABI, we use the highest quality materials and colouring processes to ensure a durable and timeless finish that you will love for years to come. Like many other materials, the colour may appear differently from product to product due to lighting within the installation location and reflection on products with different surfaces (flat and curved).
While we do our best to ensure consistency between batches and use strict colour toning and matching quality procedures to lessen variations, we acknowledge that there may be minor variations between batches. We encourage you to check over your items once received to ensure that you are satisfied with the finish. Should you receive anything of concern, our team is here to help!
| SKU | 17766 |
| Weight | 6.9kg |
| Brand | ABI Interiors |
| Finish/Coating | (PVD) Brushed Gunmetal - ABI’s Heat Shield – Industrial Grade Electro Colouring System (Physical Vapour Deposition) |
| Construction | Button: 304 Stainless Steel Cistern: HDPE Plastic |

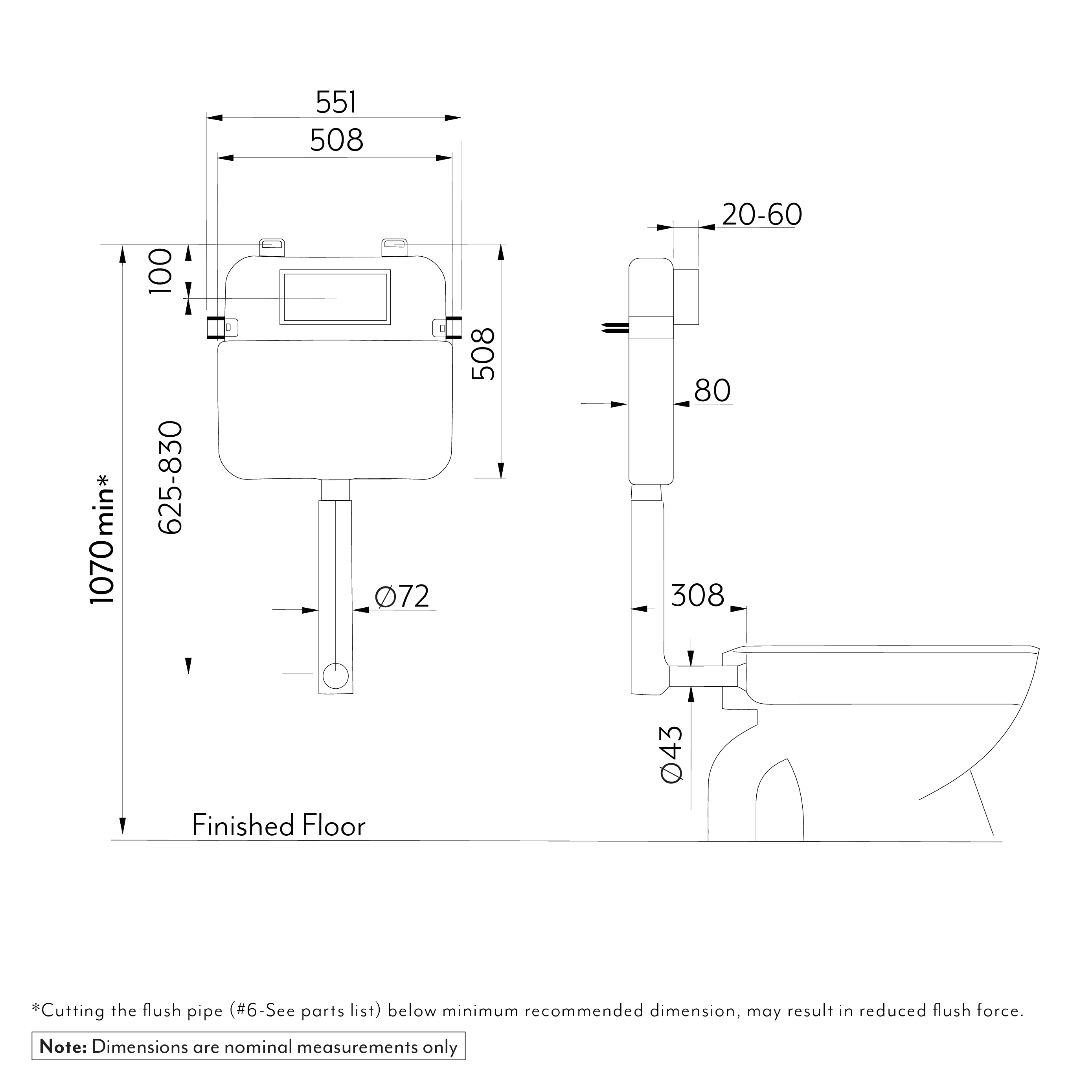

| Dimensions (mm) | Dimensions of Aliro Toilet Button Cover: Height: 163mm Length: 248mm Width: 36mm Dimensions of the ABI Pneumatic In-Wall Cistern: Height excluding flush pipe range: 508mm Height including flush pipe range: 670-830mm Length: 551mm Width: 80mm |
| ETA |
Specification guides can be found under the Downloads tab.
4
Water Rating
Nominal Average Flush: 3.5L, Full Flush 4.7L, Half Flush 3.2L
Litres Per Minute
L08437
Registration Number
3.5L
LitresAverage Flush
L per Full Flush 4.7L
|L per Half Flush 3.2L
Bim Files
| View Library |  |
Product FAQs
Is this compatible with all wall-hung toilet pans, or only specific models?
This product is only compatible with floor-mounted toilet pans.
Can the cistern be installed in both timber and steel stud walls?
Yes, however, additional noggings and appropriate screws are required for this type of installation.
