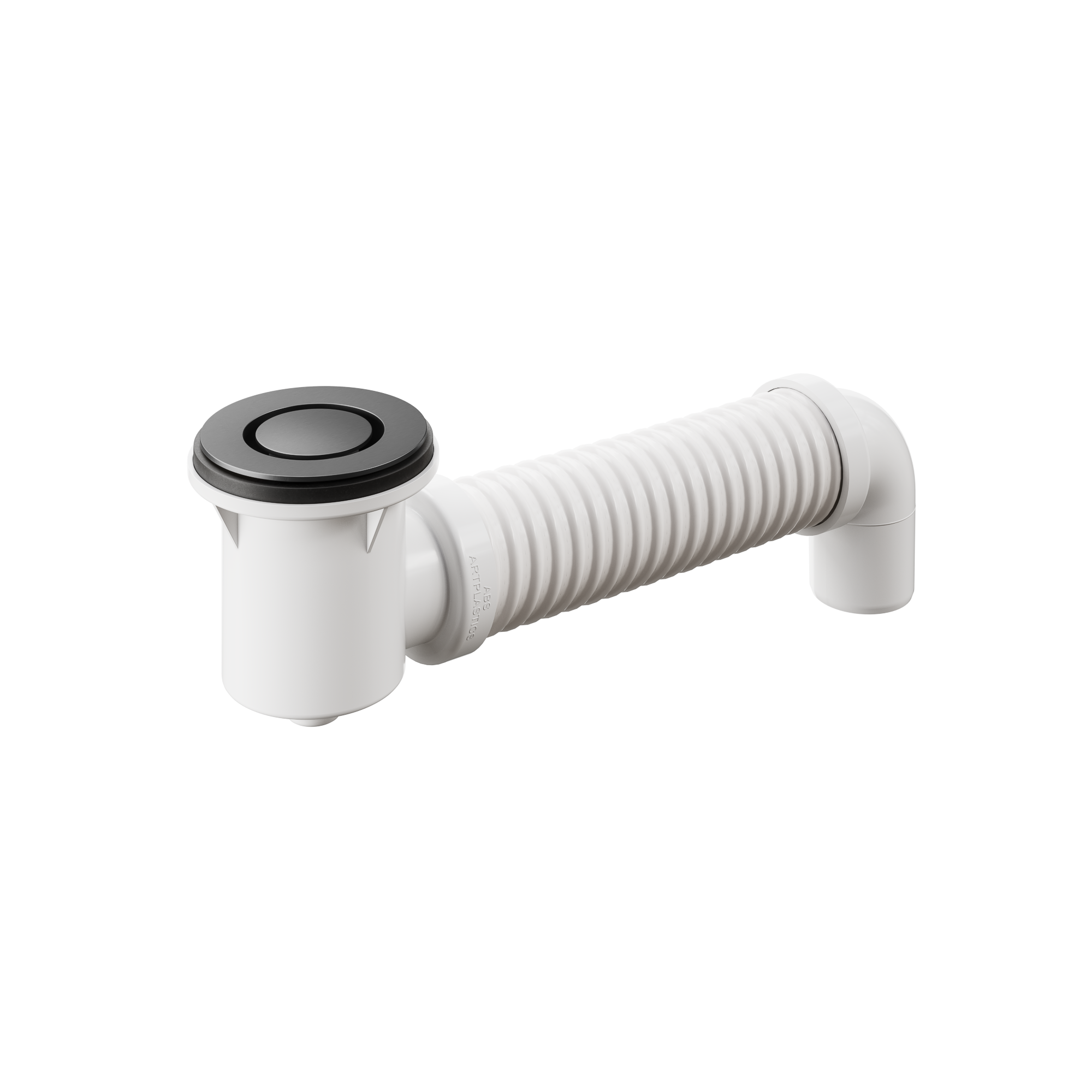

Bath Bend Pop Down with Connector - Titanium Grey

SKU: 16420

in stock


Bath Bend Pop Down with Connector - Titanium Grey

SKU: 16420

in stock


$229.90
Add to Cart
Also Bought With
Chevron-Down

Product Details

With a compact design, the Bath Bend Pop Down with Connector provides easy draining capability for your bath with a practical pop-up function.

Please Note:

– The Bath Bend Pop Down with Connector can be universally installed. However, the outlet size must be 40mm.
– The depth is adjustable for baths between 2-12mm in thickness. Additional screws may be required for baths thicker than 12mm.

Features:

– Compact top-fixing design
– Flexible connector (600mm in length)
– Self-lubricating/anti-jam acetal mechanism
– Innovative quick removal mechanism for drain access and cleaning

Dimensions:

– Height: 77mm
– Diameter: 73mm
– Flexible connector: (600mm in length)
– Maximum offset: 650mm

Product Info

  • Features
  • Specifications
  • Environment
  • Downloads
Ease of Cleaning
Ease of Installation
PVD (Physical Vapour Deposition)
SKU 16420
Weight 0.81kg
Brand Art Australia
Construction Solid Brass
Finish/Coating (PVD) Titanium Grey - Heat Shield – Industrial Grade Electro Colouring System (Physical Vapour Deposition)
Dimensions (mm) Height: 77mm
Diameter: 73mm
Outlet: 40mm
Flexible connector (600mm in length)
Maximum offset: 650mm
Overflow Yes
ETA
What's In The Box 1 x Outer Body (ABS)
1 x Pop Down Mechanism
1 x Inner Body
1 x Rubber Double Seal
1 x Flexible Tube (PVC 600mm)
1 x Outlet (ABS)
2 x M5 Adjustment Bolts

Specification guides can be found under the Downloads tab.

Bim Files
View Library Download

Product FAQs


Does this pop-up waste have an overflow?

Yes, this pop-up waste has both an overflow and non-overflow functionality.


What type of coating is used on this product?

This product uses Heat Shield Industrial Grade Electro Colouring System (Physical Vapour Deposition)
PVD (Physical Vapour Deposition) is an industrial-grade molecular-based colouring system that provides a harder, more corrosive-resistant finish whilst remaining environmentally friendly.


How does the plug and waste function?

The waste has a simple push function. Simply press down on the waste to prevent the water from draining, and press again to pop the waste up, allowing the water to drain. The water won’t drain out when the waste is pressed down.


What size hole can this waste be used for?

This pop-up waste is designed to fit a hole size of 40mm.
