Davis Entry Door Handle & Lock Set - Brushed Brass

SKU: 16305

in stock


Davis Entry Door Handle & Lock Set - Brushed Brass

SKU: 16305

in stock


$199.90
Add to Cart
Also Bought With
Chevron-Down

Product Details

The Davis Entry Door Handle & Lock Set showcases the sleek, minimalist design of the Davis Entry Door Handle with the additional benefit of security with a mortice lock  — giving you a complete Entry Door Pull and Lock Set.

Boasting the advantages of 316 stainless steel construction, such as anti-corrosion properties and rust resistance, this handle is ideal for exterior settings, complementing our interior Davis Door Handles for a cohesive design theme throughout the entire home.

Features:

– Highly durable 316 stainless steel construction with anti-corrosive properties
– ABI HeatShield PVD Electro Colouring System provides a more corrosion-resistant finish while remaining environmentally friendly
– Single or double-sided installation
– Consistent design theme with our internal Davis Door Handle
– Mortice lock functionality for additional security
– The Mortice Lock has been rigorously tested to meet Australian Standards (AS 4145.2-2008) and achieves the highest rating for durability (D8, 500 000 cycles), with corrosion resistance and security ratings (C7, S7).

Dimensions:

Door Handle:
– Euro Cylinder Backset: 60mm
– Faceplate Height: 235mm
– Faceplate Width:24mm
– Depth: 89mm

Lock:
– Height: 235mm
– Width: 24mm
– Depth: 89mm

Product Info

  • Features
  • Specifications
  • Warranty
  • Environment
  • Downloads
316 Stainless Steel
PVD (Physical Vapour Deposition)
Anti-Corrosion
SKU 16305
Weight 1.535kg
Brand ABI Interiors
Finish/Coating (PVD) Brushed Brass - ABI’s Heat Shield – Industrial Grade Electro Colouring System (Physical Vapour Deposition)
Construction 316 Stainless Steel
Dimensions (mm) Entry Door Handle:
Euro Cylinder Backset: 60mm
Faceplate Height: 235mm
Faceplate Width: 24mm
Depth: 89mm

Mortice Lock:
Height: 235mm
Width: 24mm
Depth: 89mm
Hardware Mounting hardware included

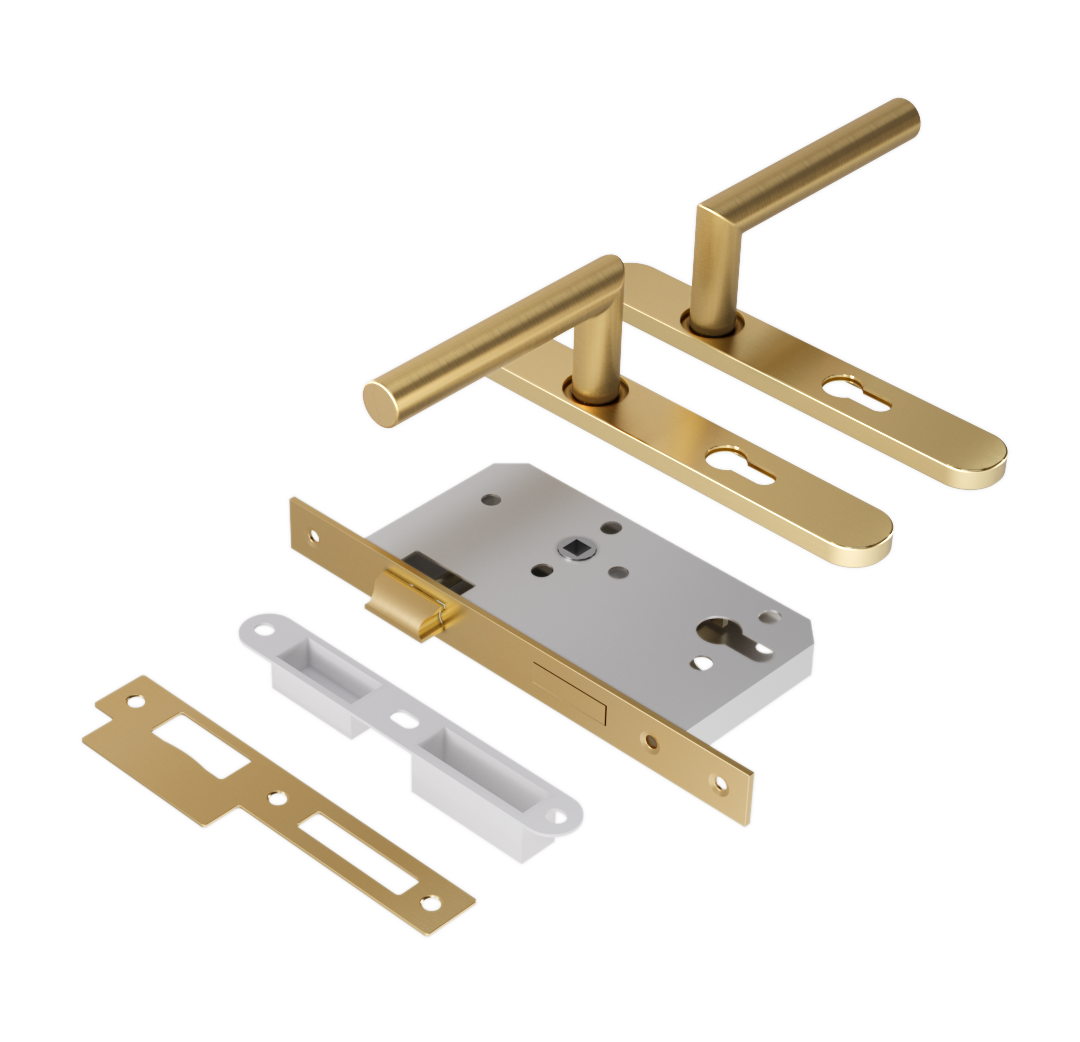

What's In The Box Box 1:
2 x Davis Entry Door Handles
3 x Connection Bolts
1 x Spindle
1 x Allen Key

Box 2:
1 x Mortice Lock
1 x Strike plate
1 x Dust box
2 x Fixing screws
3 x Strike plate fixing screws
Australian Standards Mortice Lock:
Meets AS 4145.2-2008
Durability: D8, 500 000 Cycles
Corrosion Resistance: C7
Security Rating: S7
ETA

Specification guides can be found under the Downloads tab.

PRODUCT DESCRIPTION RESIDENTIAL WARRANTY NON-RESIDENTIAL WARRANTY OUTDOOR WARRANTY
Name & Finish SKU Structure Finish Cartridge Other Structure Finish Cartridge Other Structure Finish Cartridge Other
Entry Door Handle Mortice Lock - 60mm Backset - Brushed Brass 16309 25 5 - 2 5 2 - 1 10 2 - 1
Davis Entry Door Handle - Brushed Brass 16301 25 5 - 2 5 1 - 1 10 2 - 1
Bim Files
View Library Download

Product FAQs


Can this product be retrofitted to my existing door?

Because of the slim design of the backplate, retrofitting may be challenging due to the limited fixing locations, although not entirely impossible. We suggest consulting with a licensed tradesperson for advice tailored to your particular door.


Can this product be used on an internal door?

Yes, however, please note that installing it with a mortice lock will require extra time for installation, which may cost more in trade fees.


Can the Davis Entry Door Handle be installed double-sided?

Yes, the Davis Entry Door Handle can be installed double-sided as it is packaged with two door handles.


Is this product suitable for outdoor use?

Yes, the Davis Entry Door Handle is constructed from 316 Stainless Steel — a premium external material for outdoor use.

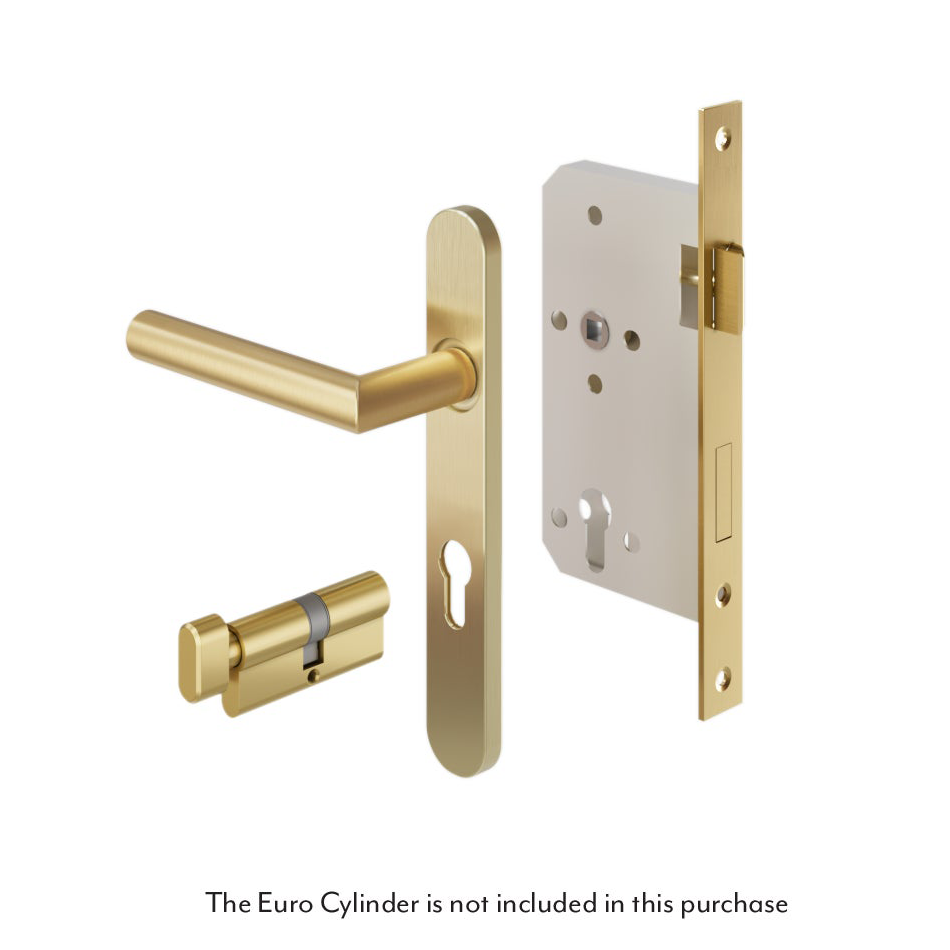

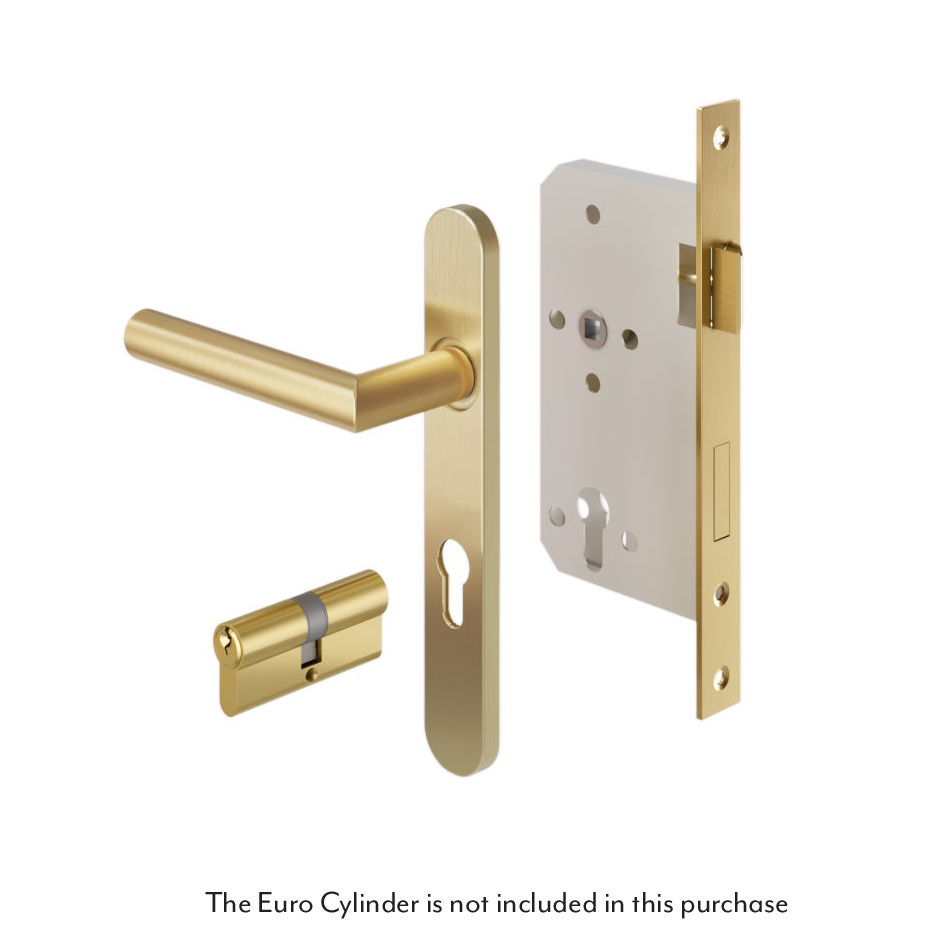

Do I need a Euro Cylinder to install this product?

Yes, this product requires a Euro Cylinder to function. You can purchase the Euro Cylinder separately from ABI or use a euro cylinder of your own.
