Roller Mortice Lock - 60mm Backset - Brushed Gunmetal
SKU: 16291
Free Delivery on Orders Over $1000!
Roller Mortice Lock - 60mm Backset - Brushed Gunmetal
SKU: 16291
Free Delivery on Orders Over $1000!
Colour: Brushed Gunmetal
Complete with...
$44.90
Euro Cylinder Single (Key/Turn) 70mm - Brushed Gunmetal
Product Details
The Euro Cylinder Single features a standardised locking mechanism with key-to-turn functionality. Although locking is possible from both sides, key-to-turn means only one side of the lock is secured by a key. This setup is ideal for situations where security is only required from one side of the door, such as front and back entryways, garages, or laundry rooms.
Constructed from durable 316 stainless steel, this euro cylinder locking system is engineered to withstand environmental conditions, making it ideal for both indoor and entryways. It is available in four distinctive colours for effortless design coordination.
Features:
– Highly durable 316 stainless steel construction with anti-corrosive properties.
– ABI HeatShield PVD Electro Colouring System provides a more corrosion-resistant finish.
– Secure six pin lock for additional security
– Our Euro Cylinders have been rigorously tested to meet Australian Standards (AS 4145.2-2008) and achieve the highest rating for durability (D8, 500 000 cycles), with corrosion resistance and security ratings (C7, S7).
Dimensions:
– Backset: 60mm
– Faceplate Height: 235mm
– Faceplate Width: 24mm
– Depth: 89mm
$44.90
Euro Cylinder Double (Key/Key) 70mm - Brushed Gunmetal
Product Details
The Euro Double Cylinder incorporates a standardised locking mechanism with a key-to-key functionality that allows locking from both inside and outside to enhance security. While it’s suitable for installation in any door, this locking mechanism is ideal for security doors, as an extra layer of safety for family homes with young children, or business or apartment entrances.
Constructed from durable 316 stainless steel, this euro cylinder locking system is engineered to withstand environmental conditions, making it ideal for both indoor and entryways. It is available in four distinctive colourways for effortless design coordination.
Features :
– Highly durable 316 stainless steel construction with anti-corrosive properties
– ABI HeatShield PVD Electro Colouring System provides a more corrosion-resistant finish
– Secure six-pin lock for additional security
– Our Euro Cylinders have been rigorously tested to meet Australian Standards (AS 4145.2-2008) and achieve the highest rating for durability (D8, 500 000 cycles), with corrosion resistance and security ratings (C7, S7).
Dimensions:
– Backset: 60mm
– Faceplate Height: 235mm
– Faceplate Width: 24mm
– Depth: 89mm
Product Details

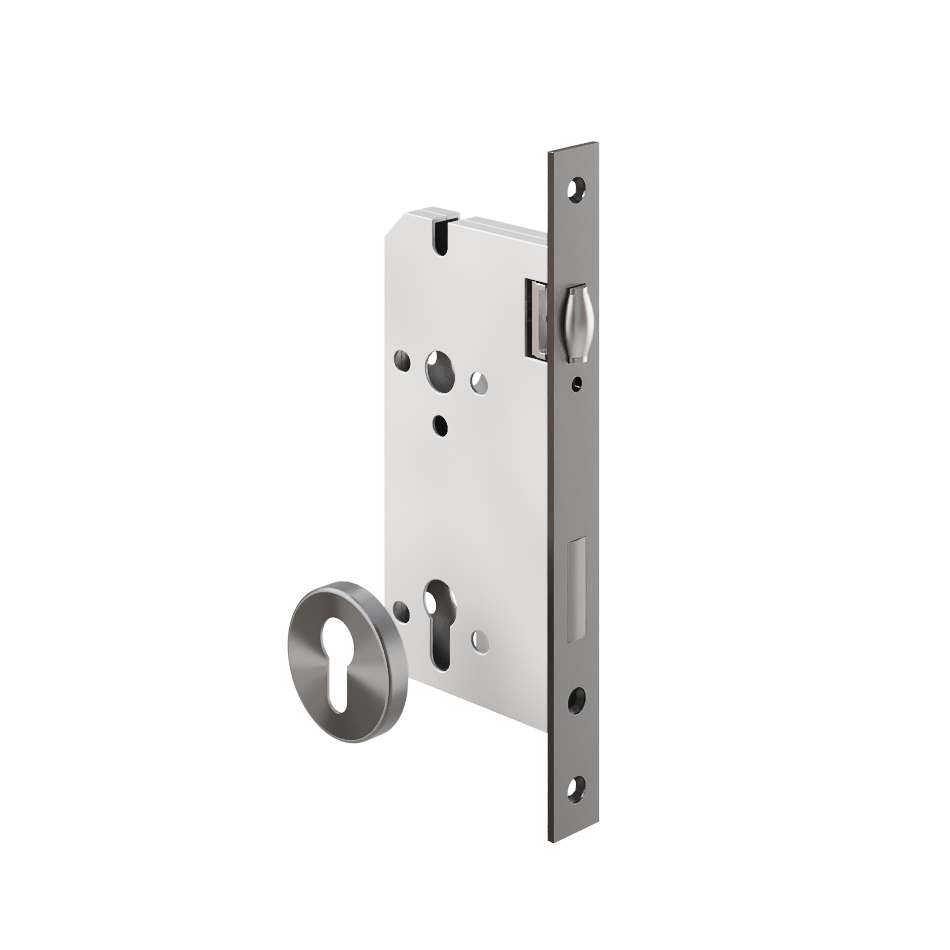

The Roller Mortice Lock is ideal when used in conjunction with pull door handles, allowing for easy latching and secure locking. It features a roller mechanism that can be conveniently adjusted from the front of the plate after installation.
It has adjustable tabs to perfect the angle of the striker plate for optimal door closing and includes both a left and right strike plate to suit any installation. The Roller Mortice Lock is compatible with our Euro Double Cylinder and Euro Single Cylinder, allowing it to be easily interchanged to accommodate your needs. It is suitable for retrofitting and new installations.
Please Note:
– The Roller Mortice Lock requires a Euro Cylinder to function. This component is sold separately.
– This is a multipurpose product for both internal and external doors.
Features:
– Highly durable 316 stainless steel construction with anti-corrosive properties
– ABI HeatShield PVD Electro Colouring System provides a more corrosion-resistant finish
– Compatible with 6-pin Euro Double Cylinder and Euro Single Cylinder
Dimensions:
– Height: 240mm
– Width: 24mm
– Depth: 90mm
Product Features
316 Stainless Steel
Highly Durable
Ease of Installation
Material
Construction
316 Stainless Steel
Finish/Coating
(PVD) Brushed Gunmetal – ABI’s Heat Shield – Industrial Grade Electro Colouring System (Physical Vapour Deposition)
*We implement strict quality procedures to minimise colour variations, however we acknowledge that there may be minor differences between batches. We encourage you to check over your items once received to ensure that you are satisfied with the finish. Should you receive anything of concern, our team is here to help!
For more information on our finish quality
Specifications
| SKU | 16291 |
| Weight | 0.926kg |
| Brand | ABI Interiors |
| Finish/Coating | (PVD) Brushed Gunmetal – ABI’s Heat Shield – Industrial Grade Electro Colouring System (Physical Vapour Deposition) |
| Construction | 316 Stainless Steel |
| Dimensions (mm) | Height: 240mm Width: 24mm Depth: 90mm |
| Disclaimer | Requires a Euro Cylinder to function. This component is sold separately. |
| What's In The Box | 1 x Roller catch / mortice lock 1 x Strike plate left 1 x Strike plate right 1 x Dust box 2 x Fixing screw 25mm 3 x Fixing screw 16mm 2 x Bracket 2 x Cover plate 2 x M4 x 60mm Snap-off bolt 2 x M4 Hex Nuts 4 x Fixing screw 20mm |
| ETA |
Specification guides can be found under the Downloads tab.
Downloads
Product Documents
| Roller Mortice Lock - 60mm Backset - Specification |  |
Bim Files
| View Product |  |
| View Library | |
Brushed Gunmetal
At ABI, we use the highest quality materials and colouring processes to ensure a durable and timeless finish that you will love for years to come. Like many other materials, the colour may appear differently from product to product due to lighting within the installation location and reflection on products with different surfaces (flat and curved).
While we do our best to ensure consistency between batches and use strict colour toning and matching quality procedures to lessen variations, we acknowledge that there may be minor variations between batches. We encourage you to check over your items once received to ensure that you are satisfied with the finish. Should you receive anything of concern, our team is here to help!
| PRODUCT DESCRIPTION | RESIDENTIAL WARRANTY | NON-RESIDENTIAL WARRANTY | OUTDOOR WARRANTY | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name & Finish | SKU | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other |
| Roller Mortice Lock - 60mm Backset - Brushed Gunmetal | 16291 | 25 | 5 | - | 2 | 5 | 2 | - | 1 | 10 | 2 | - | 1 |
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
Product FAQs
Is your roller latch adjustable?
Yes, it can be adjusted after installation to a position that works best.
Is the strike plate left and right compatible?
Yes, there is a left and a right strike plate included in the box.
Do you offer a key-to-key lock?
Yes, you can choose between key-to-key and key-to-turn Euro Cylinder at checkout. This component is sold separately.
