Euro Cylinder Single (Key/Turn) 70mm - Antique Bronze
SKU: 18303
Free Delivery on Orders Over $1000!
Euro Cylinder Single (Key/Turn) 70mm - Antique Bronze
SKU: 18303
Free Delivery on Orders Over $1000!
Colour: Antique Bronze
Product Details
The Euro Single Cylinder features a standardised locking mechanism with key-to-turn functionality. Although locking is possible from both sides, key-to-turn means only one side of the lock is secured by a key. This setup is ideal for situations where security is only required from one side of the door, such as front and back entryways, garages, or laundry rooms.
Constructed from durable 316 stainless steel, this euro cylinder locking system is engineered to withstand environmental conditions, making it ideal for both indoor and entryways.
Crafted using our exclusive 3-step process that integrates ceramic and vibrational technology with the superior durability of advanced PVD, this finish features artisanal texture that exudes organic elegance. Its luxurious, hand-crafted feel sets it apart from more conventional brushed finishes, making it a striking statement piece that enhances both modern and traditional interiors.
Please note:
– Due to the organic and handcrafted nature of our antique finish, subtle variations in colour, tone, and texture may occur, adding to the unique character of each piece.
Features:
– Tumbled with small stones to create a unique finish
– ABI’s Antique PVD (Physical Vapour Deposition) Coating
– 316 Stainless Steel construction offers durability for indoor, outdoor and commercial use.
– Secure six pin lock for additional security
– Our Euro Cylinders have been rigorously tested to meet Australian Standards (AS 4145.2-2008) and achieve the highest rating for durability (D8, 500 000 cycles), with corrosion resistance and security ratings (C7, S7).
Dimensions:
– Backset: 60mm
– Faceplate Height: 235mm
– Faceplate Width: 24mm
– Depth: 89mm
Browse our door hardware, or explore our complete range of hardware
Browse our antique bronze door hardware.
Product Features
316 Stainless Steel
Anti-Corrosion
Artisanal Texture
Material
Construction
316 Stainless Steel
Finish/Coating
(PVD) Antique Aurum - ABI’s Heat Shield – Industrial Grade Electro Colouring System (Physical Vapour Deposition)
*We implement strict quality procedures to minimise colour variations, however we acknowledge that there may be minor differences between batches. We encourage you to check over your items once received to ensure that you are satisfied with the finish. Should you receive anything of concern, our team is here to help!
For more information on our finish quality
Specifications
| SKU | 18303 |
| Weight | 0.281kg |
| Finish/Coating | (PVD) Antique Aurum - ABI’s Heat Shield – Industrial Grade Electro Colouring System (Physical Vapour Deposition) |
| Construction | 316 Stainless Steel |
| Functionality | Key / Turn |
| Dimensions (mm) | Backset: 60mm Faceplate Height: 235mm Faceplate Width: 24mm Depth: 89mm |

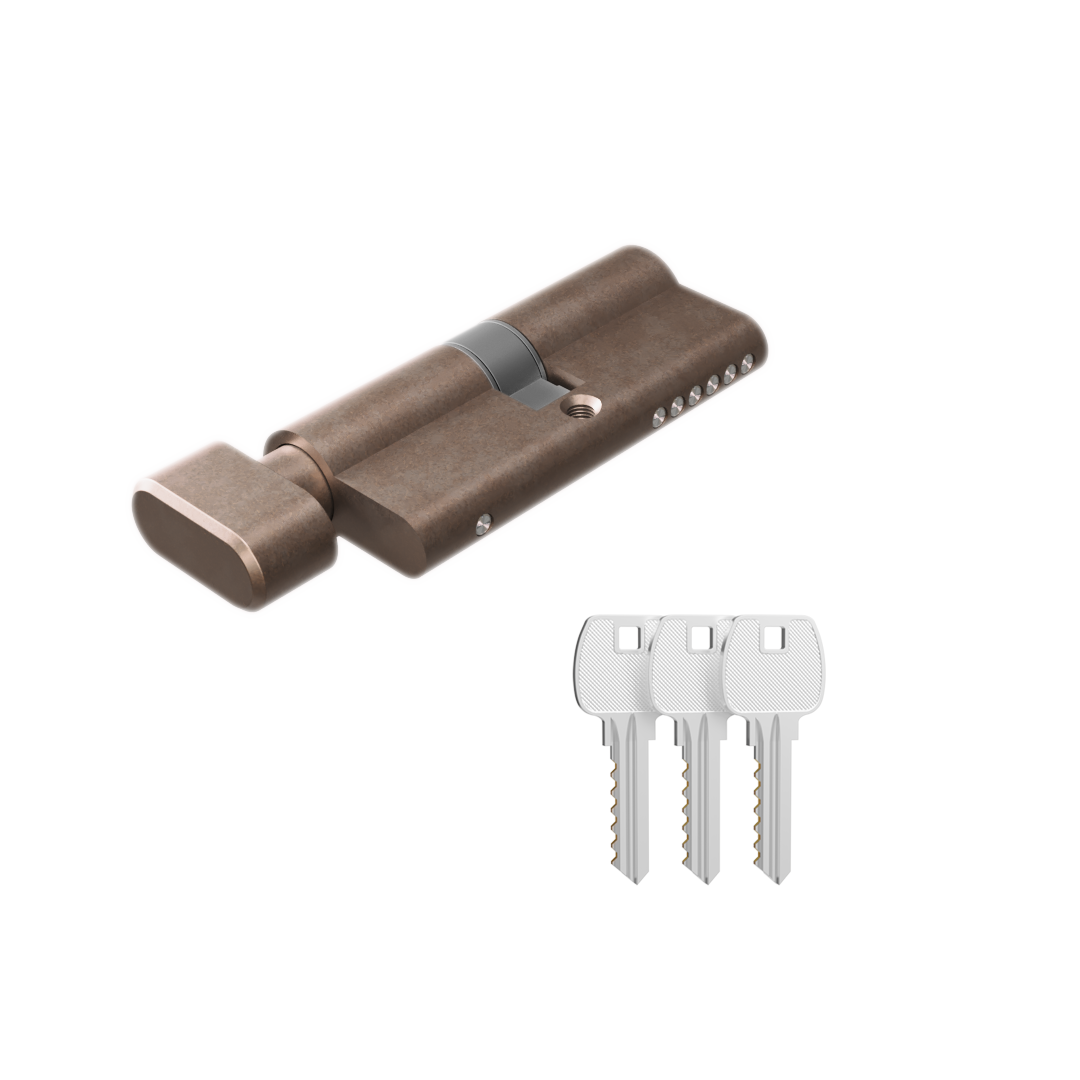

| What's In The Box | 1 x Euro Cylinder 1 x Fixing Bolt 3 x Keys |
| Australian Standards | Meets AS 4145.2-2008 Durability: D8, 500 000 Cycles Corrosion Resistance: C7 Security Rating: S7 |
Specification guides can be found under the Downloads tab.
Downloads
Bim Files
| View Library |  |
Antique Bronze
Each Antique product undergoes ABI’s exclusive three-step tumbling process, which uses ceramic and vibrational technology to create a distinctly organic texture. This is enhanced with ABI HeatShield PVD electro-colouring, delivering superior resistance to tarnishing, corrosion, and everyday wear. Due to the nature of this process, subtle variations in finish will occur. No two products are exactly the same, allowing for individuality in your design.
Like many materials, colour may vary slightly between products due to lighting conditions and how different surfaces (flat or curved) reflect light. We recommend checking your items upon delivery to ensure you’re happy with the finish. If anything isn’t quite right, our team is always here to help.
Product FAQs
Is the Euro Cylinder Single compatible with my entry pull?
No, a euro cylinder will only work when fitted with a compatible lock mechanism and door handle, as it necessitates spring loading for activation and deactivation. You can purchase an ABI Roller Mortice Lock or Mortice Lock that is compatible with the Euro Cylinder Single. This can be paired with your entry door pull to secure your front door.
What is the setback of the Euro Cylinder?
The setback of the euro cylinder measures 60mm.
What door size is suitable for the Euro Cylinder Single?
The Euro Cylinder Single works with doors ranging from 30mm to 45mm in thickness.
Will antique finishes patina/age over time?
No, our engineered Antique finish combines organic texture with advanced PVD coating for long-lasting durability that resists tarnishing or patina when properly maintained. It provides the tarnished appearance of aged metal without the unpredictability of further patination, making it an excellent option for those seeking consistency in their design.
Are the Antique finishes lead-free?
This product is certified lead-free in accordance with the lead free requirements contained in the National Construction Code Volume Three.
What is the difference between brushed and antique finishes?
Our Antique products undergo a unique 3-step tumbling process to create a distinctive artisanal texture with a beautifully lived-in feel. Unlike our signature brushed finishes, which offer a radiant shine, the Antique Collection embraces a more organic, matte appearance. This unique finish creates a striking statement, effortlessly complementing modern and traditional interiors.
